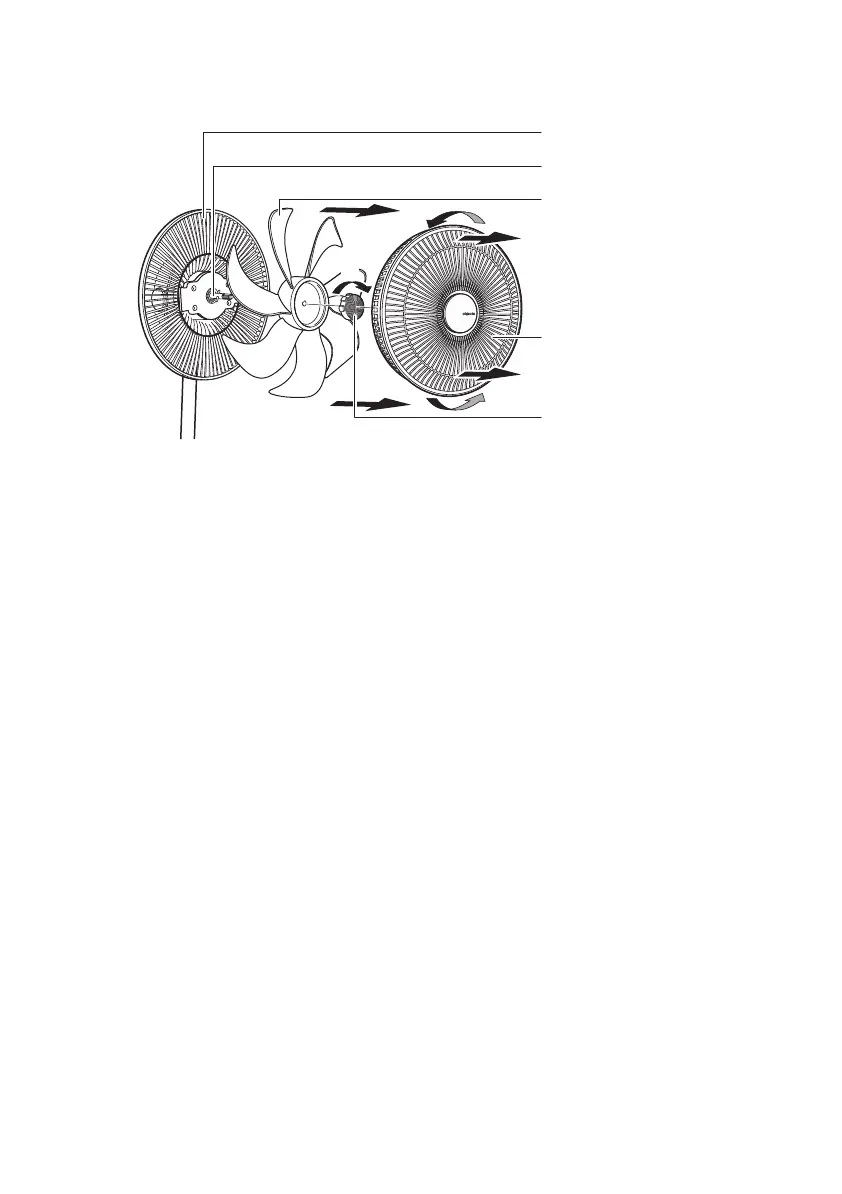

Removal Method of Blades and Front Grille
Rear grille
Motor concentric shaft
Blade
Front grille
Knob for blade mounting
1
2
2
4
3
Rotate the front grille 1.
1 to the left as a whole.
Attention
Do not apply excessive force to rotate the front grille.
Pull out the front grille completely to the point where it cannot continue to 2.
rotate
2 .
Hold the blade, turn the knob 3.
3 used for mounting blade to the right, and
then pull the blade toward you to remove it
4 .
The structure of the blade mounting knob is the reverse of the ordinary knob.
Rotating left is to install, and rotation right is to remove.
The rear grille can’t be removed. There is a wiring harness inside the rear grille, so *
be sure to pay full attention during maintenance.
Be sure to fully dry after maintenance. *
