Objecto F3 User Manual

18
English
Assembly Method of Blades and Front Grille
4
4
3
3
2
1

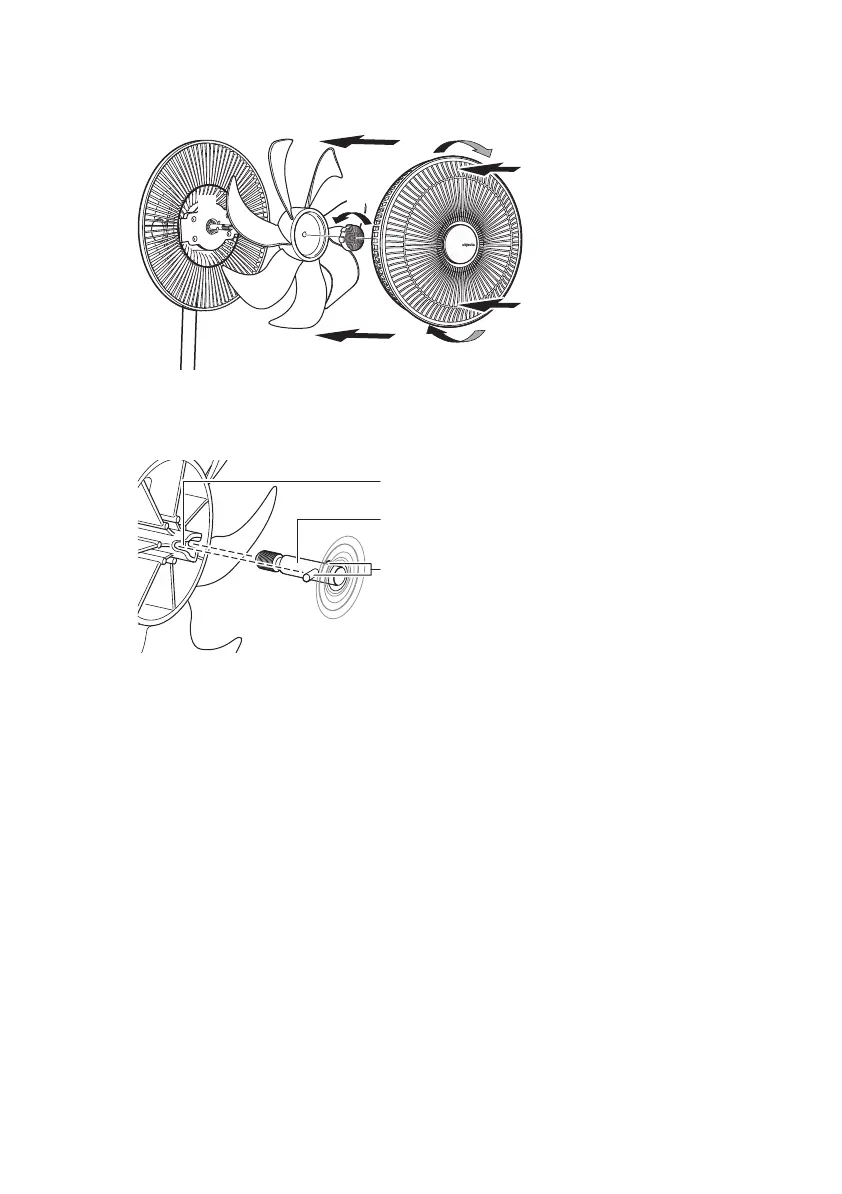

Align the pin of the motor concentric shaft and install the blade 1. 1 .
Position the pins of the blade pin fi xing part and the motor shaft base and install
them.
Fixing part of pin
Motor center shaft
Pin
Blade (reverse)
When installing the blade, align the pin fi xing part of the blade with the pin of the motor
concentric shaft 1 .
1
Hold the blade and rotate the blade mounting knob to the left to secure the 2.
blade
2 .
Hold the blade, rotate the blade mounting knob to the “left” and fully tighten the
blade.
