Oceanpower OPF138 - Beater and Discharge Door Installation

2.4 Accessories installation
IMPORTANT: Remember to clean the soft ice cream machine and its parts, according to
chapter 4.2, before using the machine the first time.

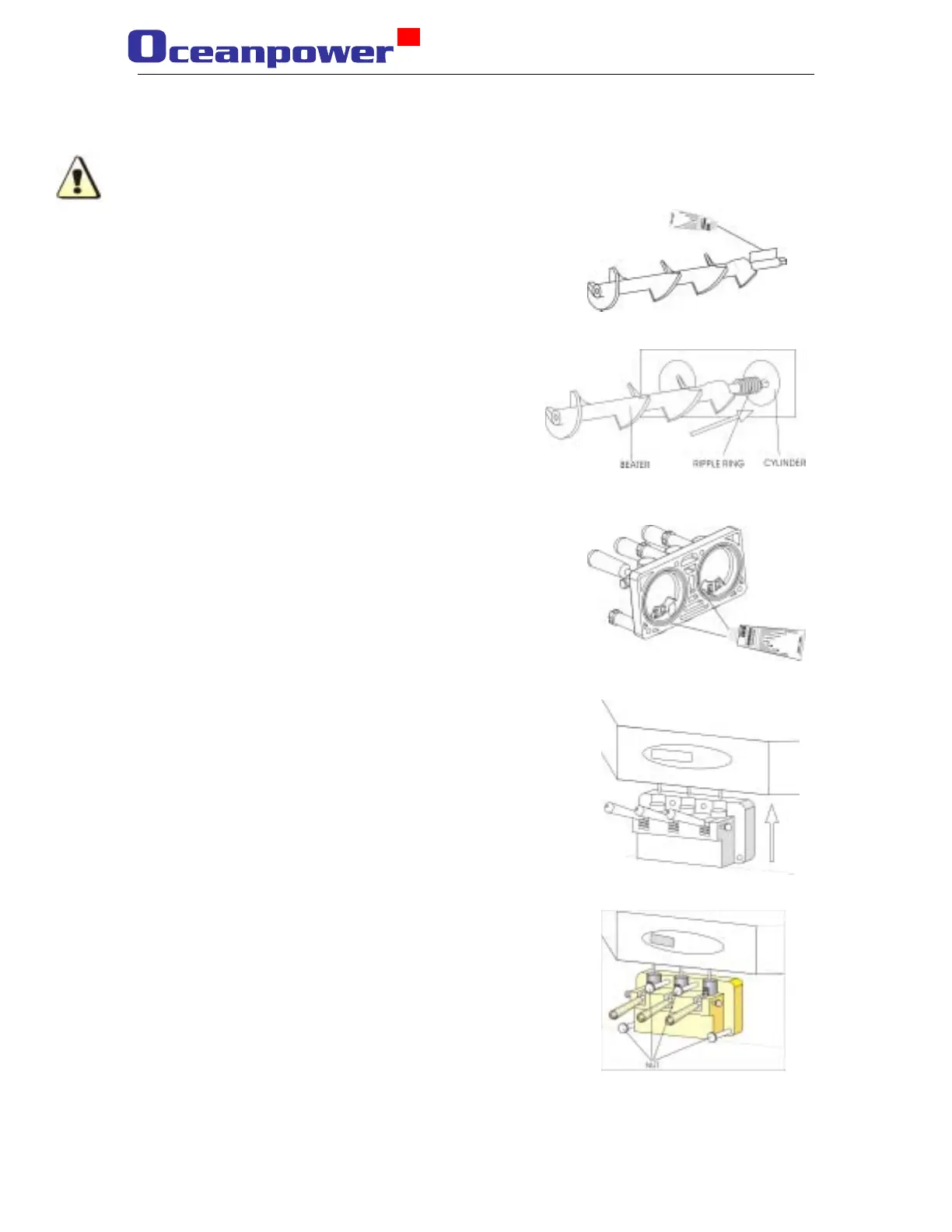

2.4.1 Beater and Discharge door installation
1. Put a thin layer of lubricant on the end section
of the steel shaft as showed in the picture and
pull on the ripple seal ring.
P
icture
7
: beater lubrication
2. Insert the beater assembly into the
cooling cylinder. When it is properly
installed, then if it will spring back if
pushed inward.
P
icture8: the beaters
p
lacemen
t
3. Put a thin layer of lubricant on the o-rings
sealing the Discharge door with the machine.
P
icture 9: the Dischar
g
e doo
r
lubrication
4. To attach the discharge door to the machine, use
the Discharge door body to press up the three
springy touch poles. Finally aim so that the four
holes on the Discharge door body fit into the
four screws on the machine.
P
icture 10: the placement of the discharge door.
Hand screws
Picture 11: the Dischar
g
e doo
r
p
lacemen
t
2
5. Finally, screw the hand screw tight, as is shown
on the picture. Remember to control that the
gap between the discharge door and the
machine is small and that the O-rings is in
place.
13
