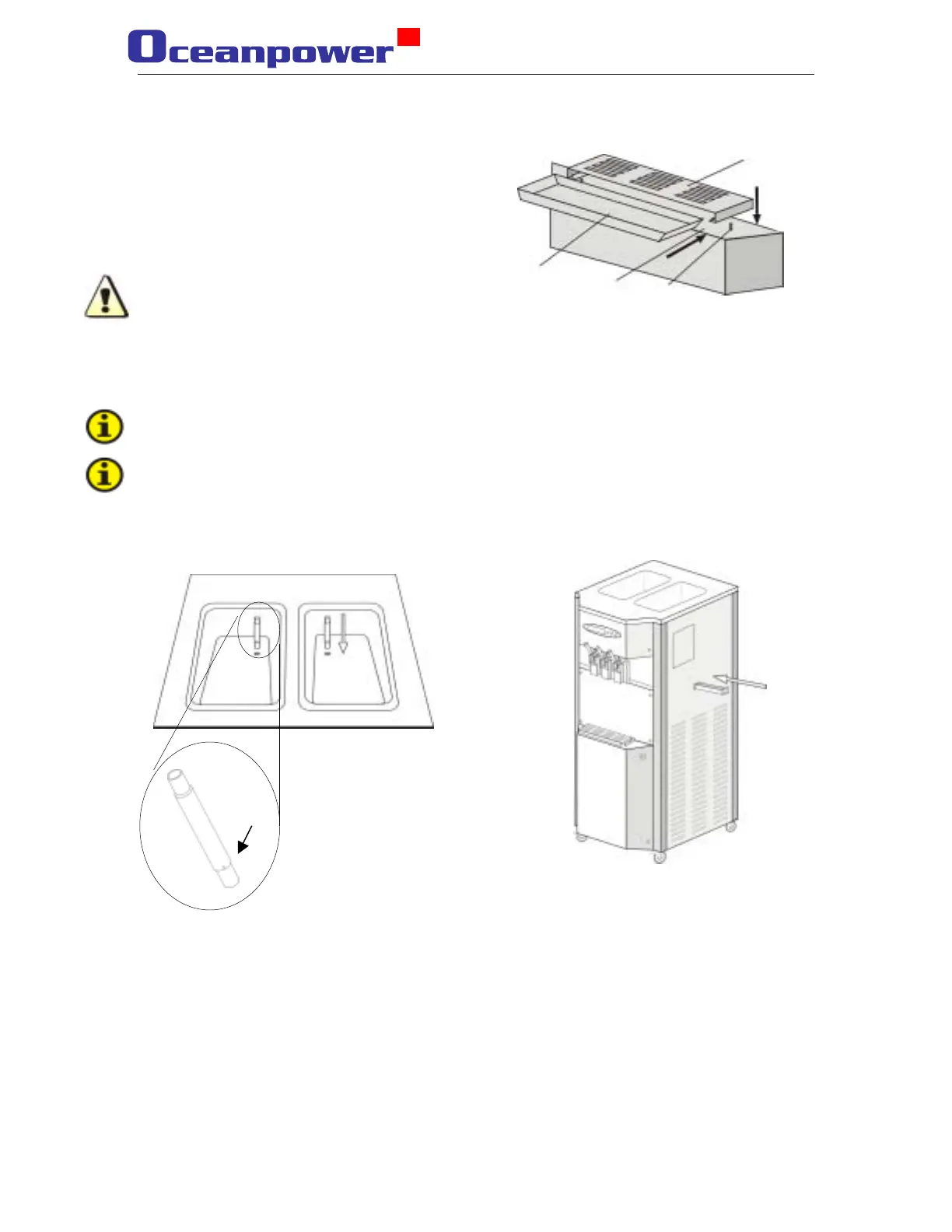

2.4.2 Installation of drip tray, drip pan and air tube
Front desk
Drip tray
Anchor point
Drip tray holder
1. Attach the drip tray holder on its
anchor points.
2. Insert the drip tray into its holder.
Warning: Be careful when handling the
drip tray holder, since sometimes it can
have sharp edges.
Picture 12: the drip tray.
3. Insert the two air tubes into its hole in respective hopper container.
4. Insert the drip pan into the hole on the side panel.
NOTE. Please, make sure that the small hole on the air tubes is pointing downward.
NOTE: the function of the air tube is to optimize the flow rate of soft ice cream
mixture into the cooling cylinder.
Picture 13: the air tubes placement Picture 14: the drip pan placement
