Mounting the camera

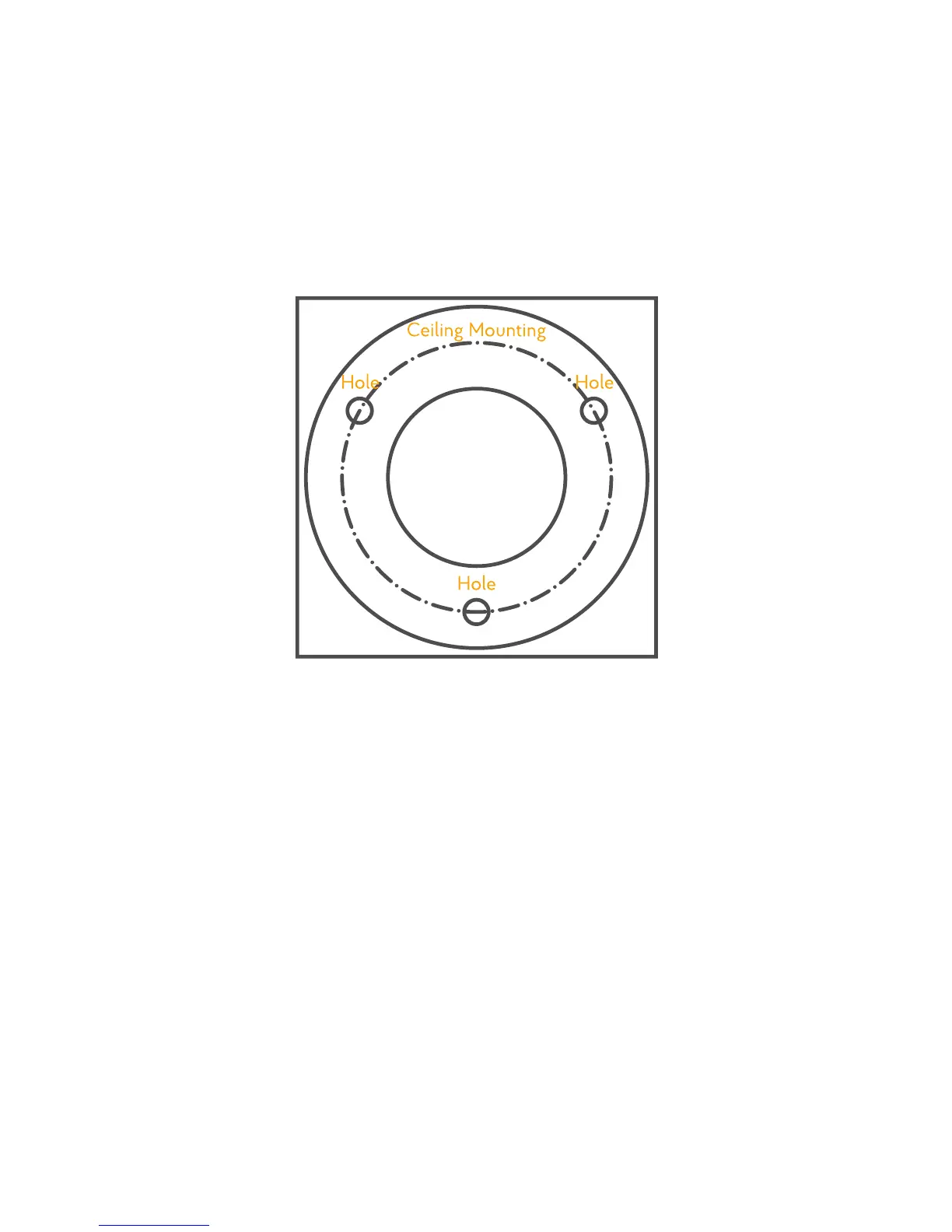

1. When sizing a hole for the screws, drill holes in
the wall according to the drill template.
2. Route the corresponding cables.
3. Secure the camera to the wall with the supplied
Screws.
Adjust the Lens
1. Loosen the adjustable nut.
2. Adjust the pan direction [0°~360°].
3. Adjust the tilt direction [0°~90°].
4. Rotate the camera [0~360°] to adjust the lens to
the appropriate surveillance angle.
5. Tighten the adjustable nut to complete the installation.
