Octave HP 300 MK2 - Two Channel Mode Operation; Two Channel Mode Diagram and Use

16
6. ADVANCED FUNCTION: The bypass mode

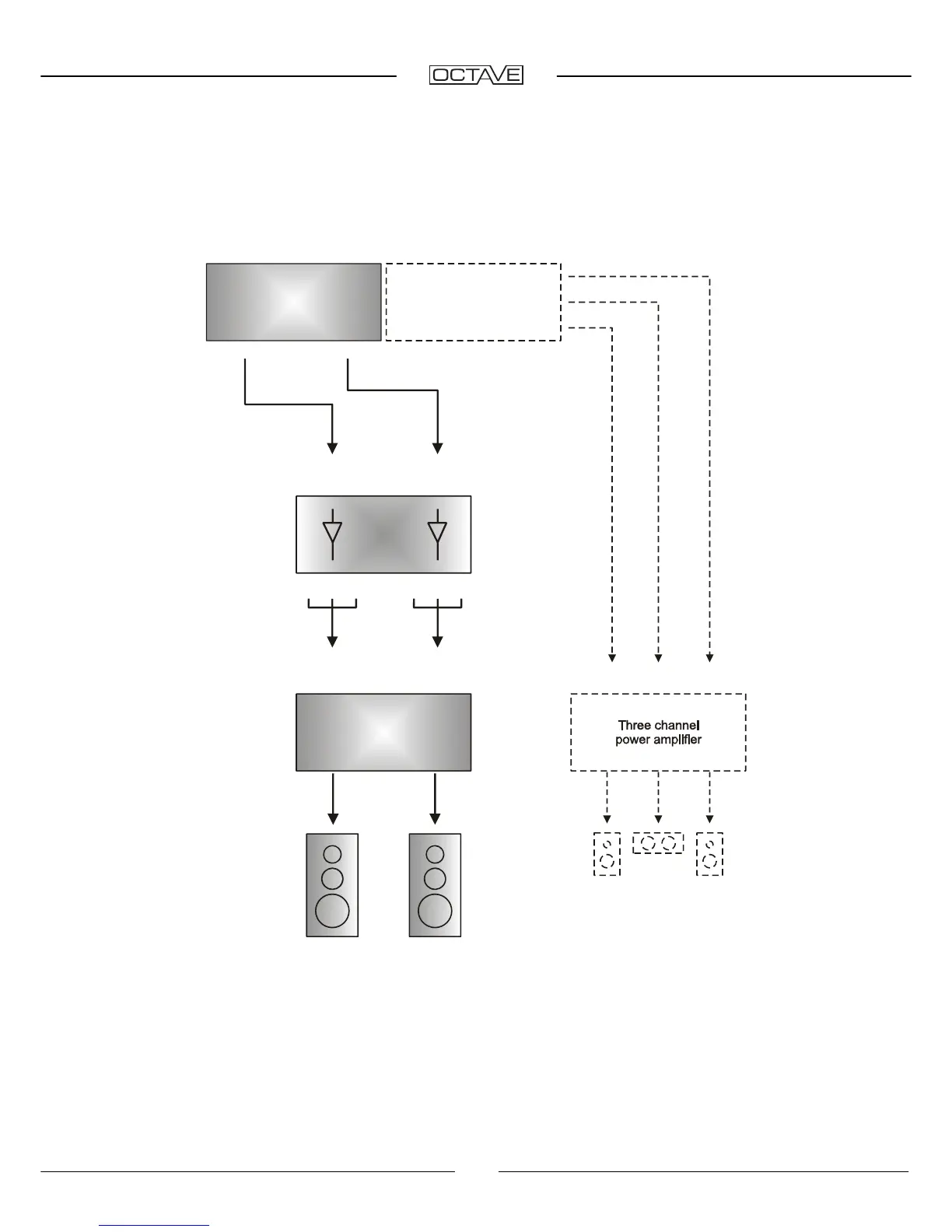

6.2. The HP 300 MK2 in the two channel mode
Front L Front R
HP 300MK2
CD / TU etc.
L
CD / TU etc.
R
Cinch / XLR-
Input L
Cinch / XLR-
Input R
Rear L Center Rear R
OUT 1 + 2 + XLR OUT 1 + 2 + XLR
L
R
Two channel unit
CD /SACD, Tuner,
Tape etc.
Multi channel unit
DVD-Player etc.
Power amplifier
Front - Main Loudspeakers
In the two channel mode all three outputs are regulated and amplified.
In the two channel mode the AUX input can be used as a normal line high level input
