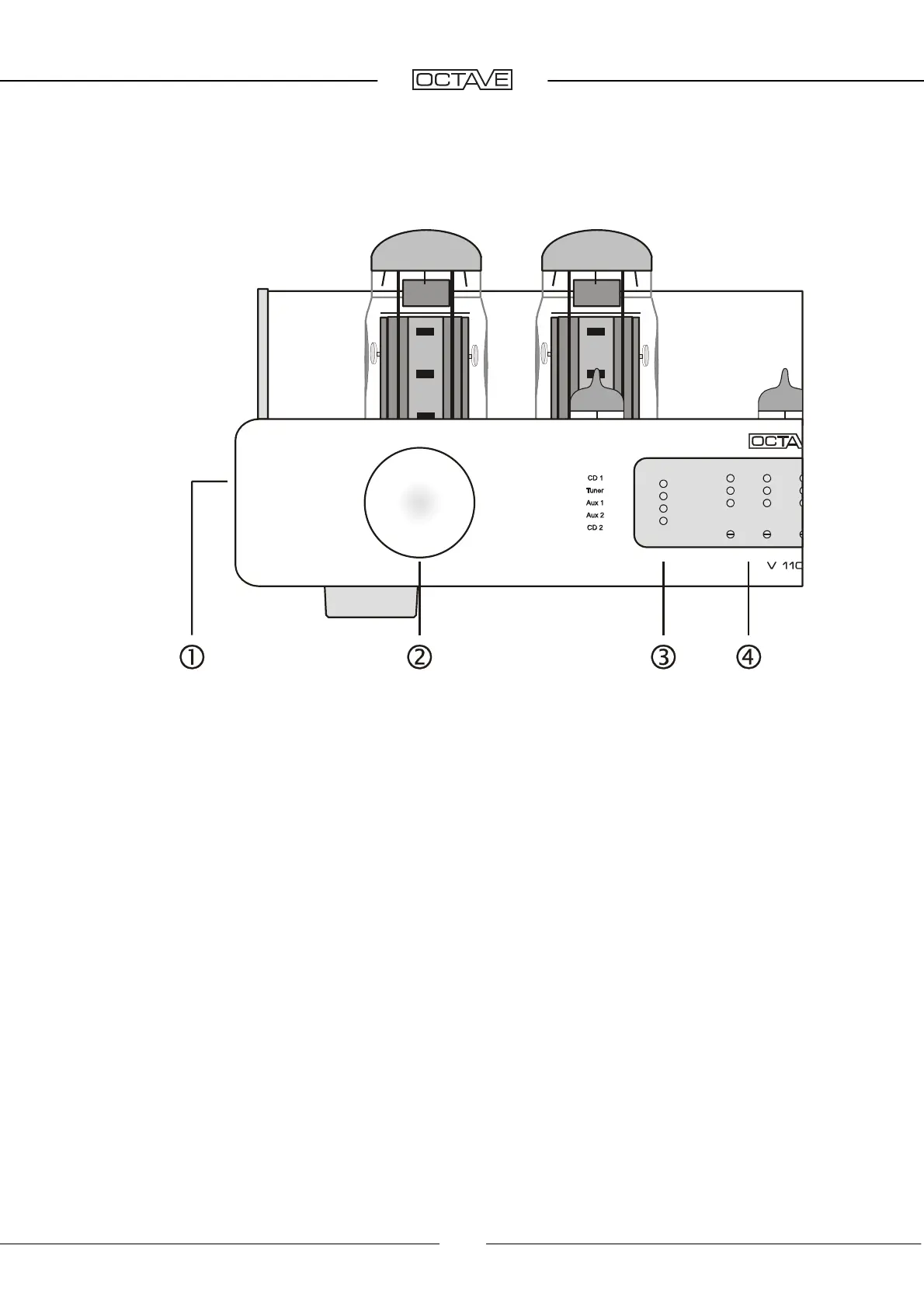

4. CONTROLS – the front panel
Power switch
0 = off; 1 = on. Power LED and Soft-Start LED illuminate. The Soft-
Start LED extinguishes after the start-up period of 50 seconds.
Input selector
This is used to select the desired input signal. A blue LED indicates
the selected input on the display.
Pos 1: CD 1 RCA line level input for CD, SACD and similar
Pos 2: Tuner RCA line level input for tuner, etc.
Pos 3: Aux 1 RCA line level input for video, etc.
Pos 4: Aux 2 RCA line level input for video, etc.
Pos 5: CD 2 XLR line level input for CD, SACD or similar.
Pos 6: The electronic BIAS measurement system is
activated (see chap. 7.3).
Pos 7: Front Ch. Multichannel input. In this mode, the V 110
functions as a two-channel power amplifier. The
volume control is bypassed. (See chap. 6.4)
The record output is switched off in this position.
LED indicators
Indicating the active input
BIAS adjustment
BIAS regulators and corresponding LED array for each power tube
