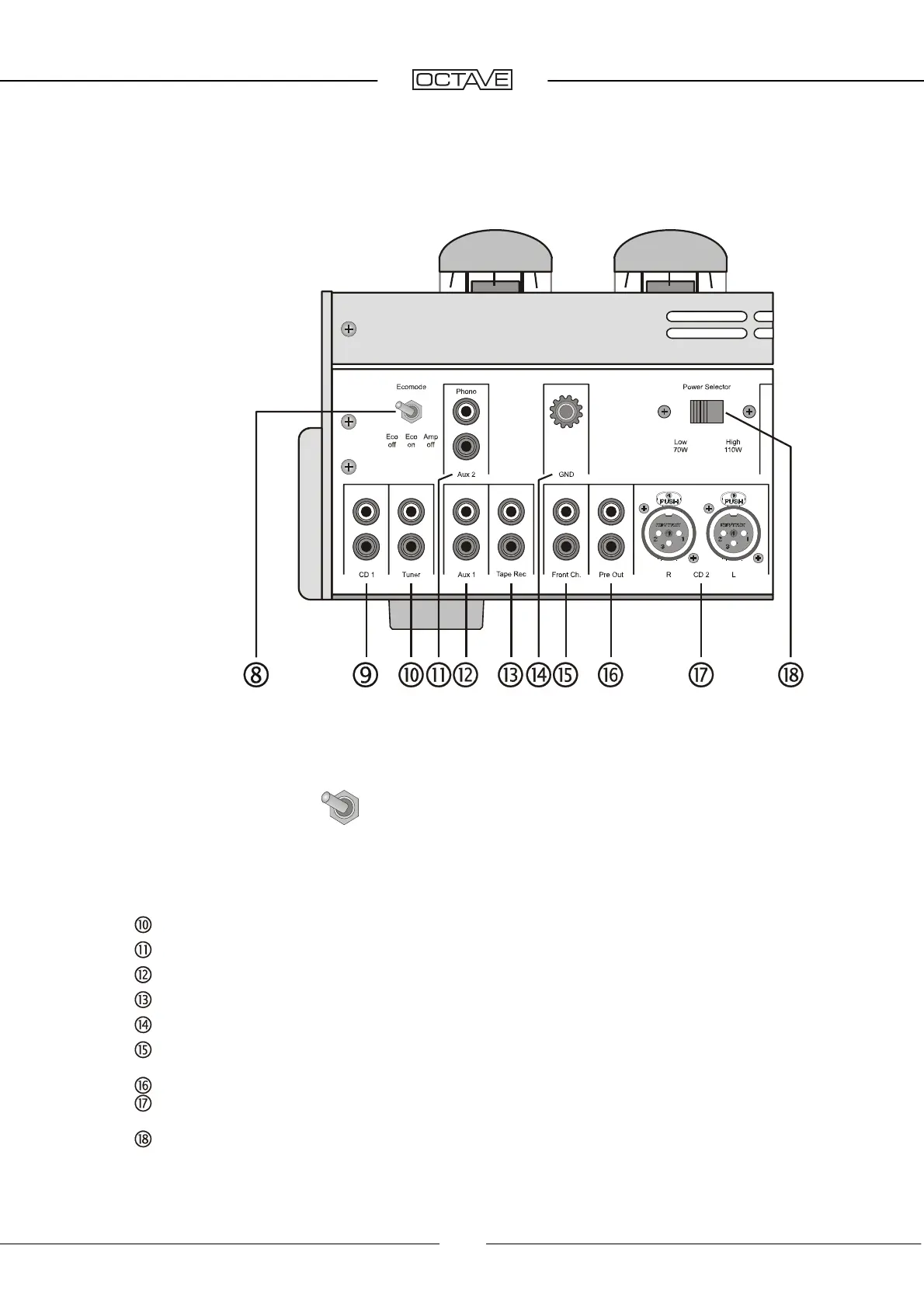

6. CONNECTIONS – the rear panel

Ecomode
Eco off: Ecomode automatic is off.
Eco on: Ecomode automatic is on.
Amp off: The power stage of the amplifier is off
(see chap. 6.4.).

CD 1
CD line level input, RCA.
Tuner
Tuner line level input, RCA.
AUX 2
RCA line level input for Video etc. or MM/MC input with Phono option.
AUX 1
RCA line level input for Video, etc.
Tape rec
Record output for tape or DAT.
GND
Ground connector for Turntable.
Front Channel
Input for the front channel of a multichannel receiver / DVD player
(see chapter 6.4).
Pre Out
Regulated preamp output for active subwoofer, etc. (see chapter 6.5.).
CD 2
CD line level input, XLR with Pin configuration for XLR connectors
(see next page 18)
Power Selector
Sliding switch to adjust the output power of the V 110.
(see Chapter 6.1)
