12. SPECIFICATIONS AND DIMENSIONS
Diagrams

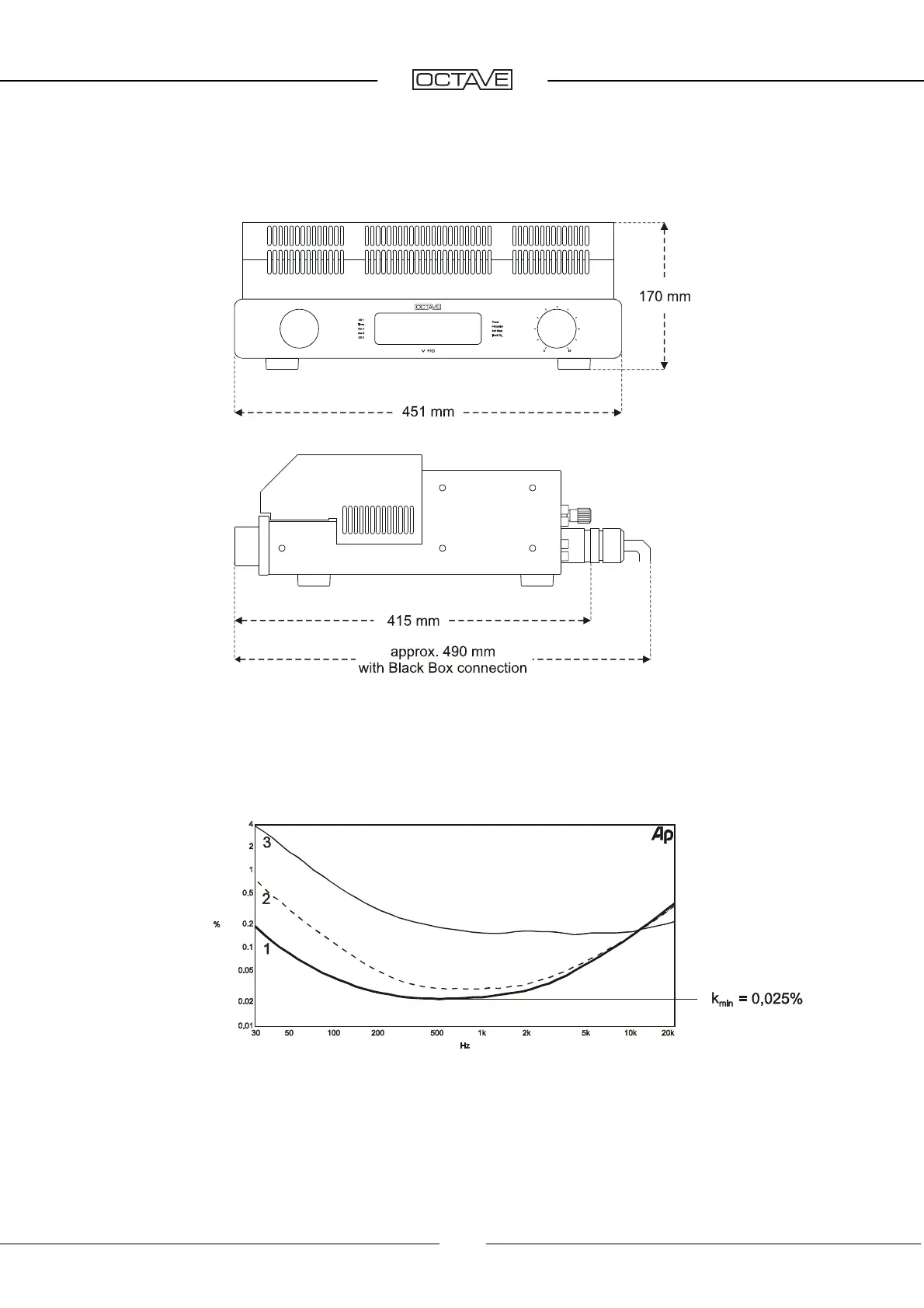

THD at 4V into 4 ohms from 30 Hz to 20 kHz at a variety of BIAS settings
Diagramm 1
Curve 1: BIAS adjusted correctly
Curve 2: BIAS 10% out
Curve 3: BIAS 30% out
