9 Use of the BIOM® 5
Instruction Manual BIOM® 5 (G/55400/1218/en) 21 / 36
Attention
Incorrect detaching is hazardous to the patient
 Never detach the BIOM® 5 over the patient.
 To dismount the BIOM® 5, swing it to its standby position.
BIOM® 5m/ml
 Pull the BIOM® 5 off the adaptor plate.
 Loosen the knurled screw, fig. 9-5, page 16, fig. 3.
 Pull the adaptor plate off the dovetail mount.
 Bring the BIOM® 5 and its components to the conditioning station
immediately.
BIOM
®
5c/cl
 Unplug the connector of the BIOM® 5c/cl from the socket at the
SDI® 4c or BIOM® connecting space housing. To unlock the plug,
take hold of the outer plug sleeve.

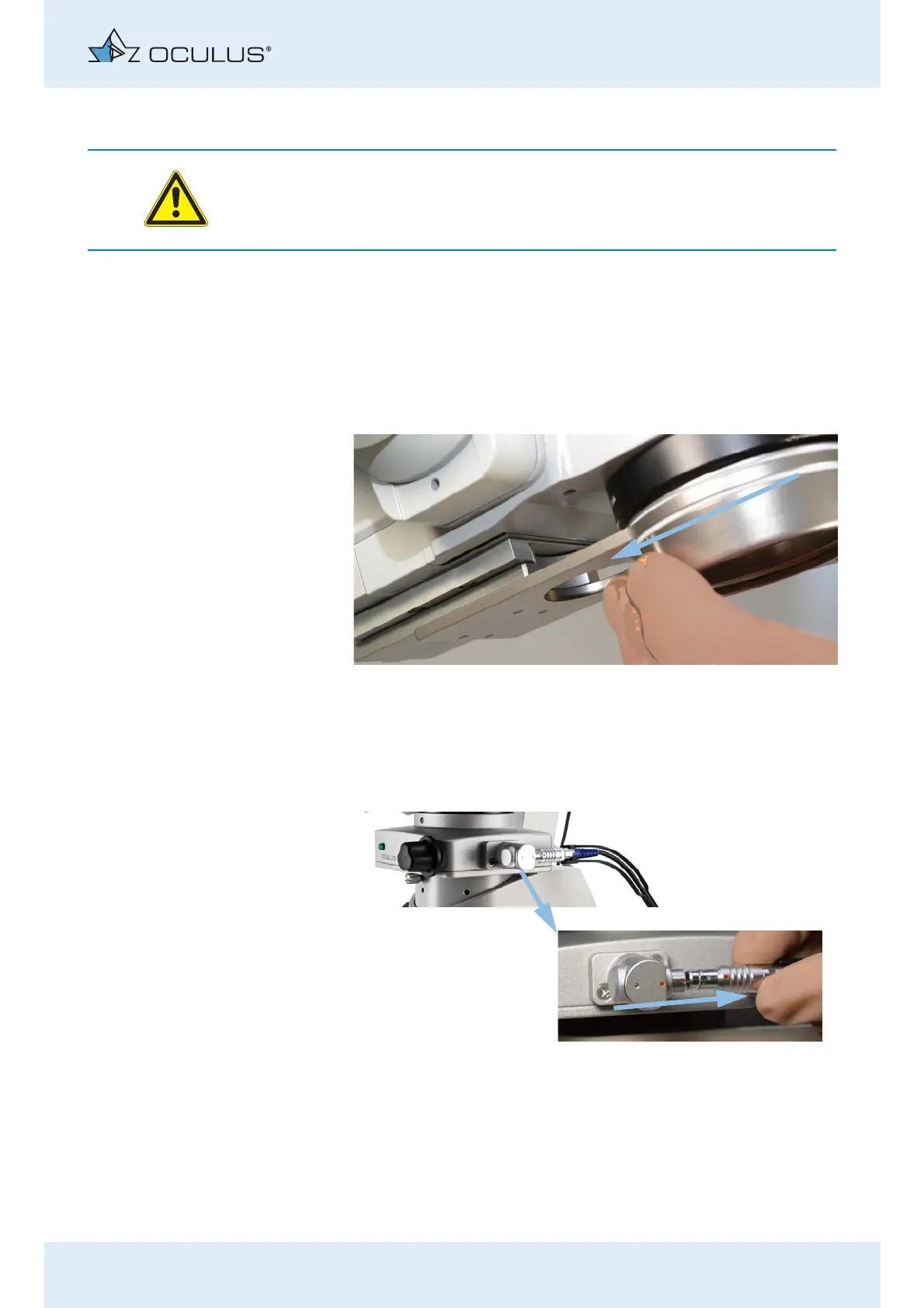

Fig. 9-10: Pull off the adaptor plate
Fig. 9-11: BIOM® 5c/cl: Disconnect the plug-in connectors
