OEC 9800C-Arm - Page 173

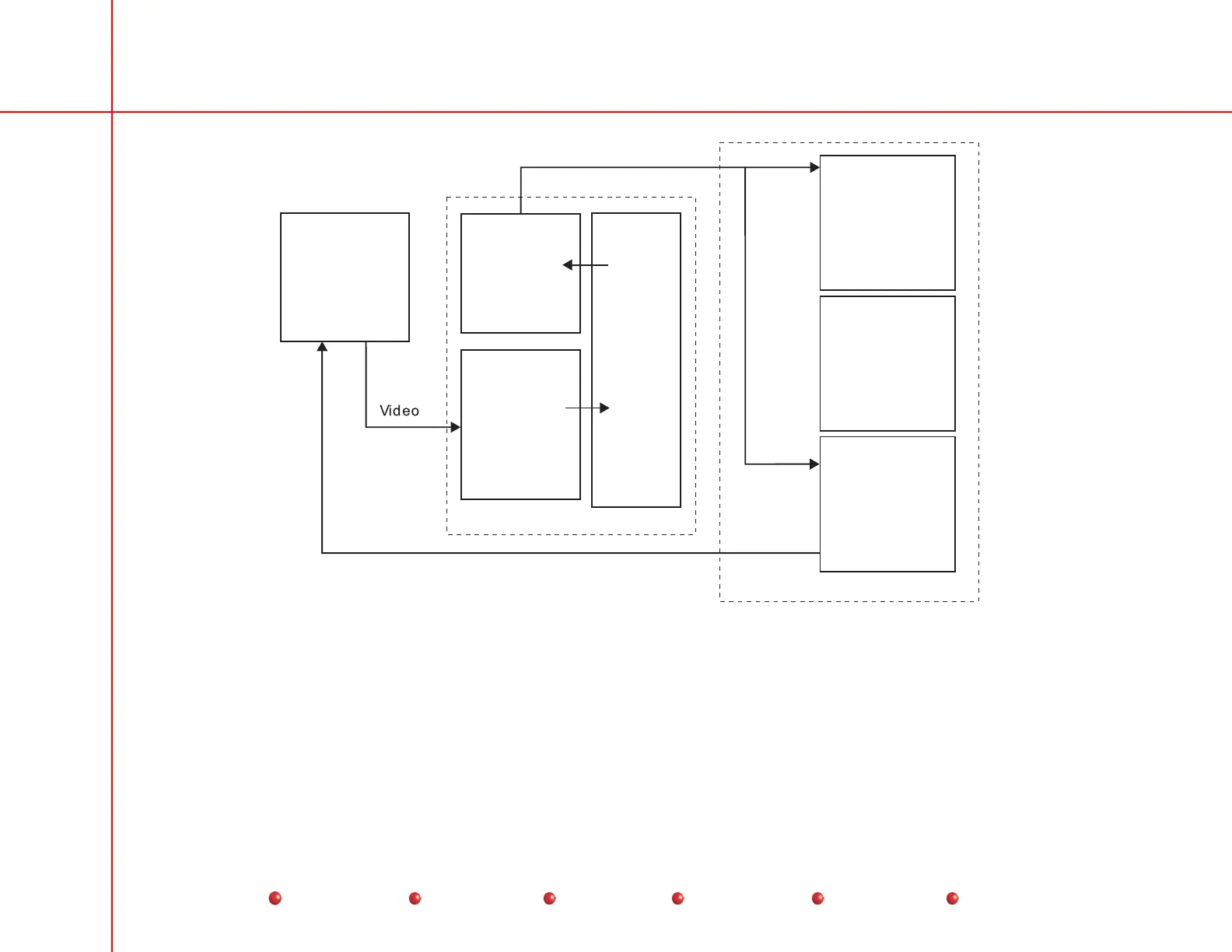

Automatic Brightness Stabilization
CAM_COMM+
CCD Camera
Video
Controller
PCB
System I/F
PCB
HV Supply
Regulator
PCB
kVp / mA
X-Ray
Controller
PCB
Camera Gain
Fluoro Function
PCB
Workstation
Host
Pentium
Computer
C-Arm Backplane
ARCNET
Interconnet Cable
ABS Path
3
