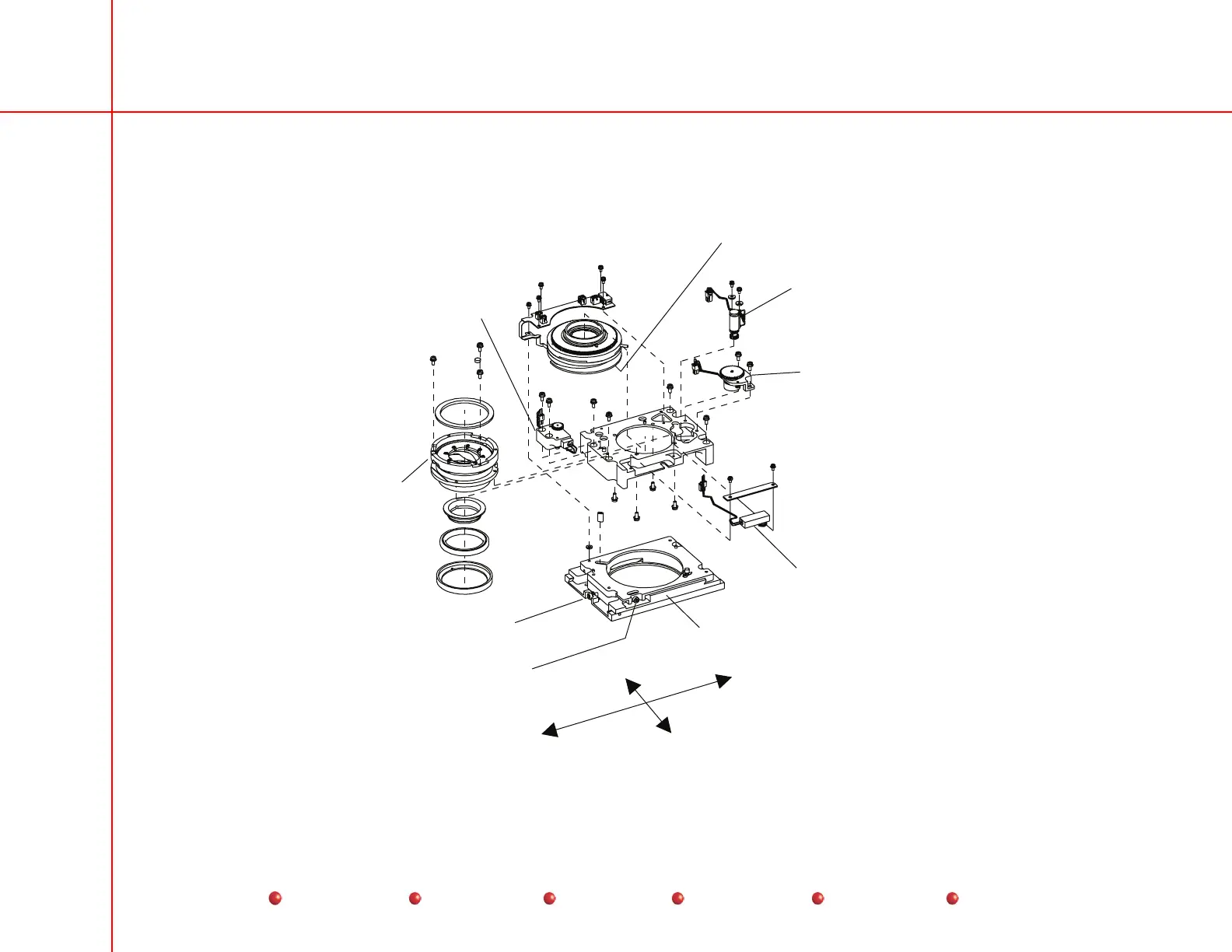

Collimator
Adjustments
Iris Motor
Iris
Housing
Shutter Leaves
Rotation Pot
Iris Pot
Shutter Leaves
Rotation
Motor
3 Dovetailed
Plates
Z
X
Z Axis Adjust
X Axis Adjust
Shutter Leaves
Motor And Pot
Collimator Components
4
