OEC 9800C-Arm - Page 181

Collimator

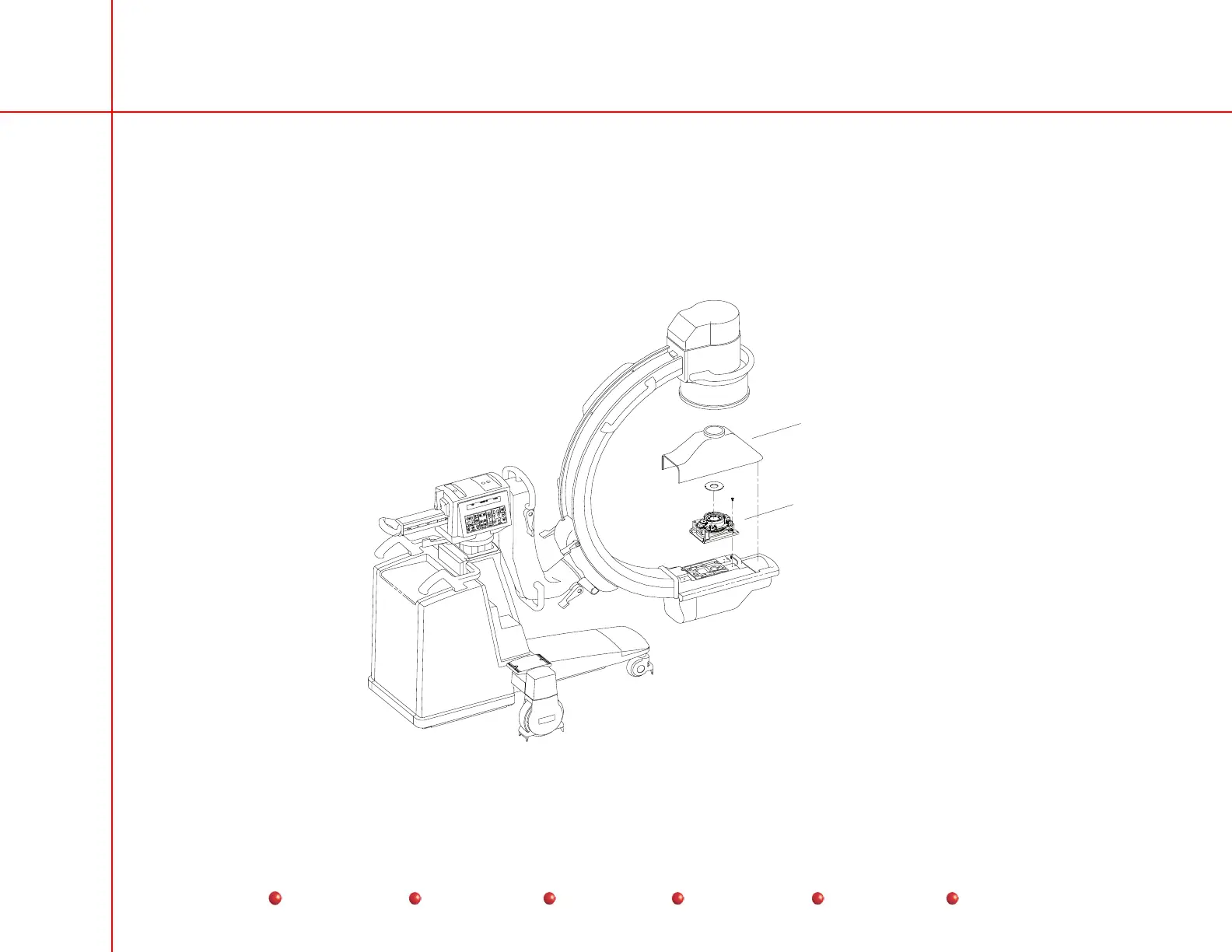

Three dovetailed mechanical plates accomplish adjustment of the collimator to the image chain. The plates are adjusted in two
planes (X-axis and Z-axis) as shown in the above illustration to align the unit with the image chain.
Refer to the Calibration chapter of this manual for collimator calibration instructions.
Miscellaneous
Collimator
Collimator
Cover
Collimator Mounting
5
