L-Arm Motion

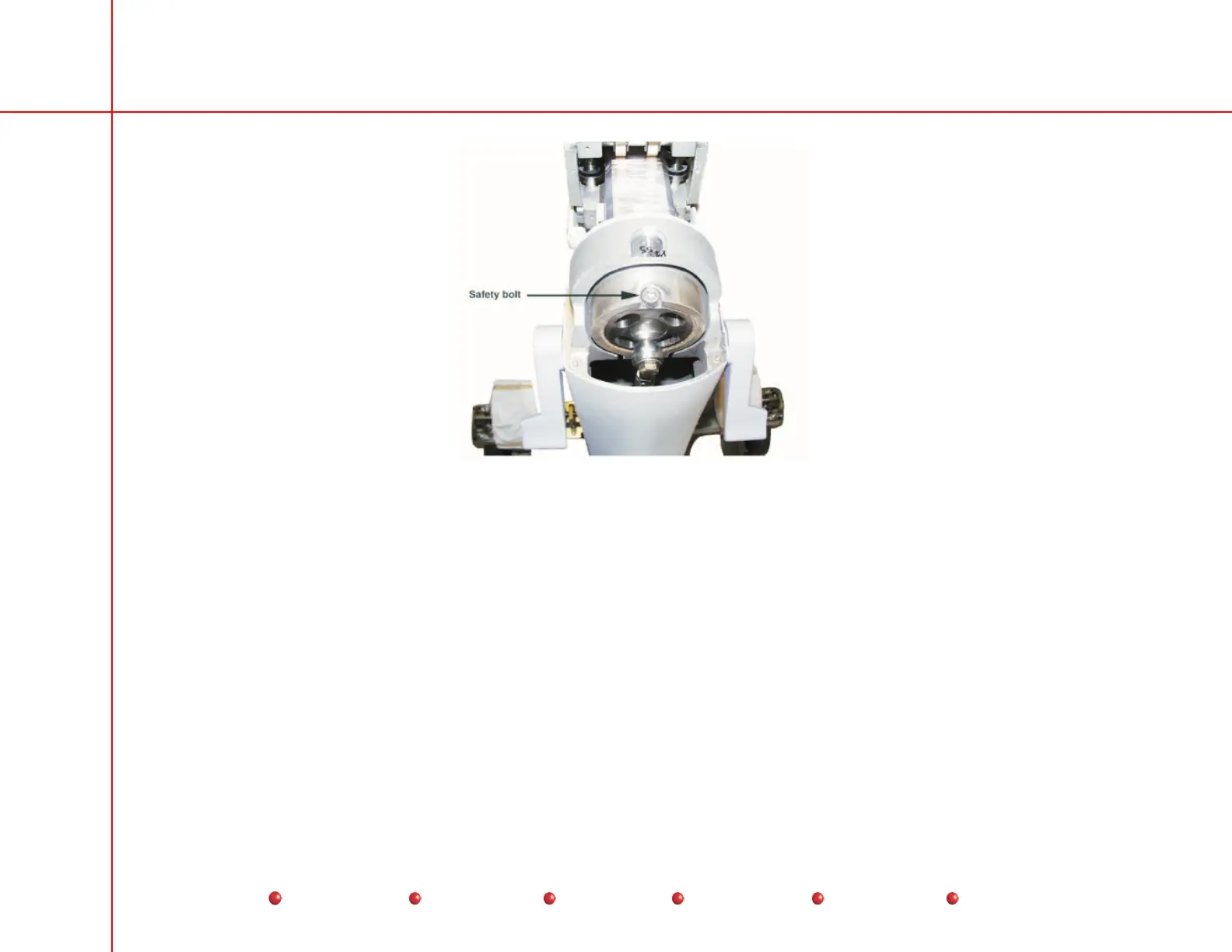

C-Arm Safety Bolt
L-Arm Brake
The following illustration is an exploded view of the L-Arm Brake assembly. If the L-Arm brake doesn't work correctly, check the
adjustment of the Brake Handle first, and then look for a loose, damaged, or worn out Brake Pad.
6
