Diagnostics
DS1
DS2
0
5
U1
U2
=ON
=OFF
After bootup, segment 6 blinks on and off (1Hz.)
to indicate that the microcontroller is running.

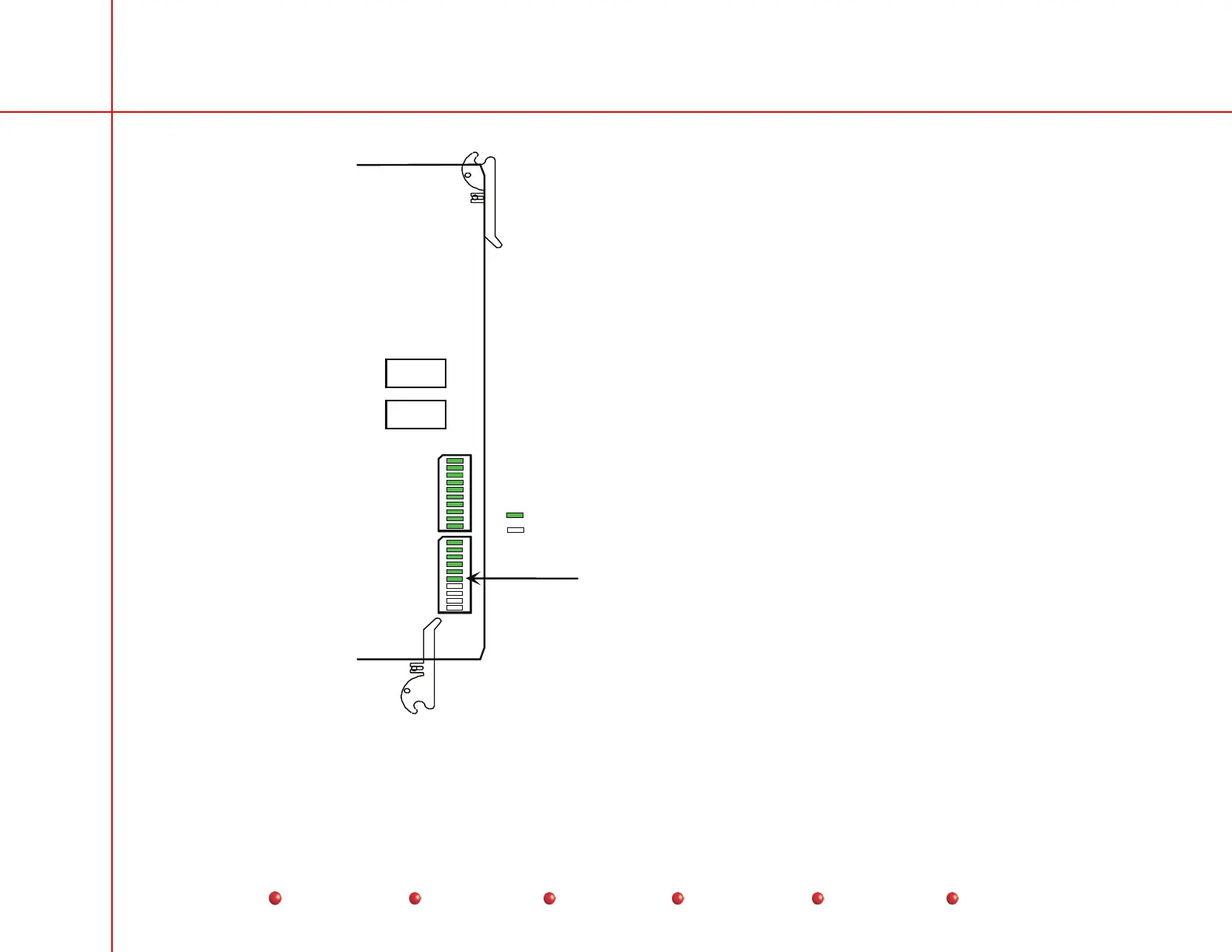

The leds are shown as they appear after boot.
DS1 and DS2 are connected to the data bus.
Events indicated by U1 and U2:
01 CPU registers initialized
02 Program flash memory checksum passed
03 Program initialized data area initialized
04 First program null data initialized
05 Secind program null data initialized
06 FFB application s/w started
07 FFB tasks initialized
08 FFB architecture s/w initialized
09 ArcNet initialized
10 Timers initialized
Fluoro Functions PCB LEDs
