OEC 9800C-Arm - Page 333

Calibration

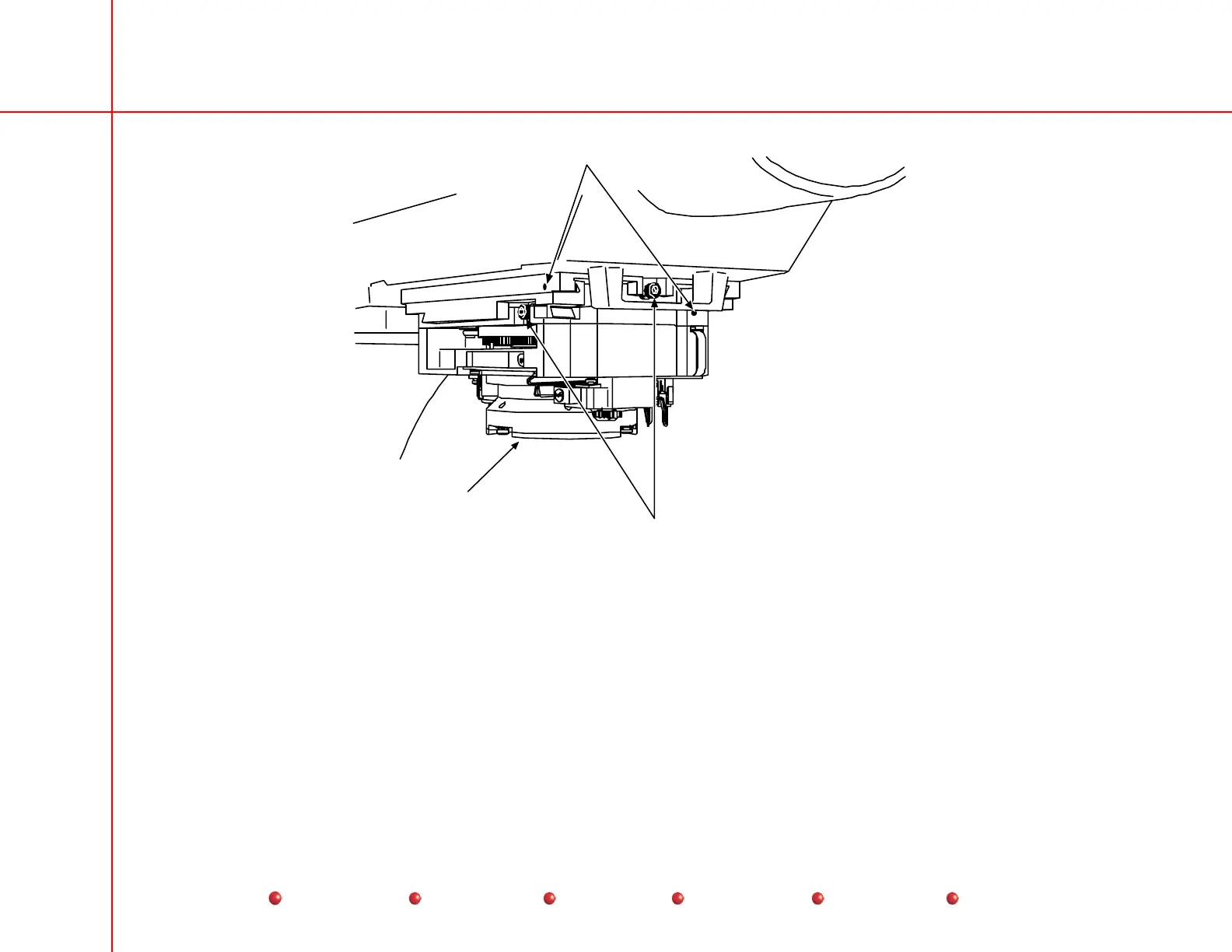

Collimator Set Screws
Collimator Adjusting Screws
Bore Sight Tool
Adjustment of Collimator Centering
3. Center the collimator in reference to the beam alignment tool using the collimator adjusting screws.
4. When the collimator is centered properly, tighten the collimator set screws.
5. Remove bore site tool.
49
