OEC 9800C-Arm - Page 332

Calibration
Collimator Mechanical Centering
2. Mechanically center collimator as follows:

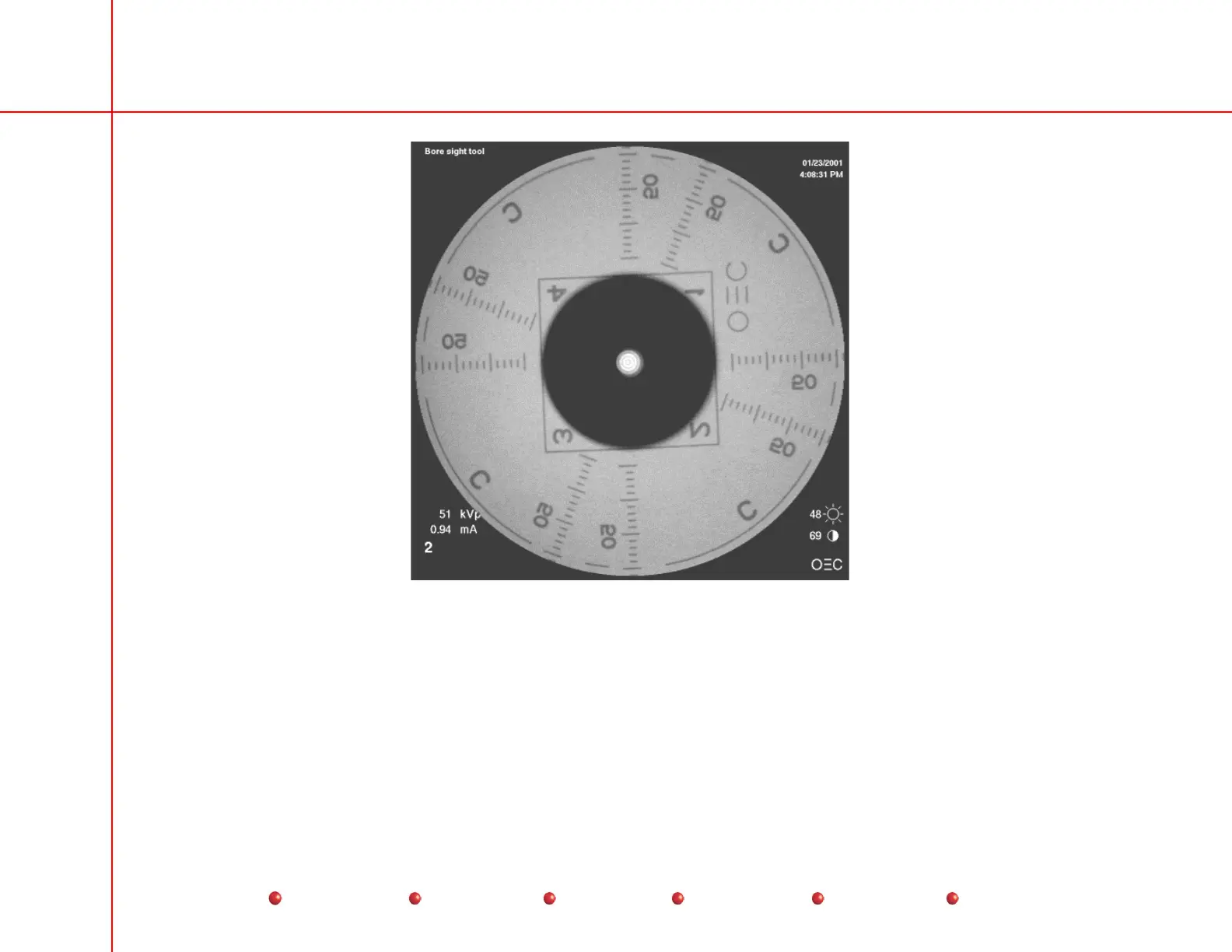

a. With the bore site tool attached to the bottom of the collimator, loosen the collimator set screws (see following picture).
48
