OEC 9800C-Arm - Page 335

Calibration

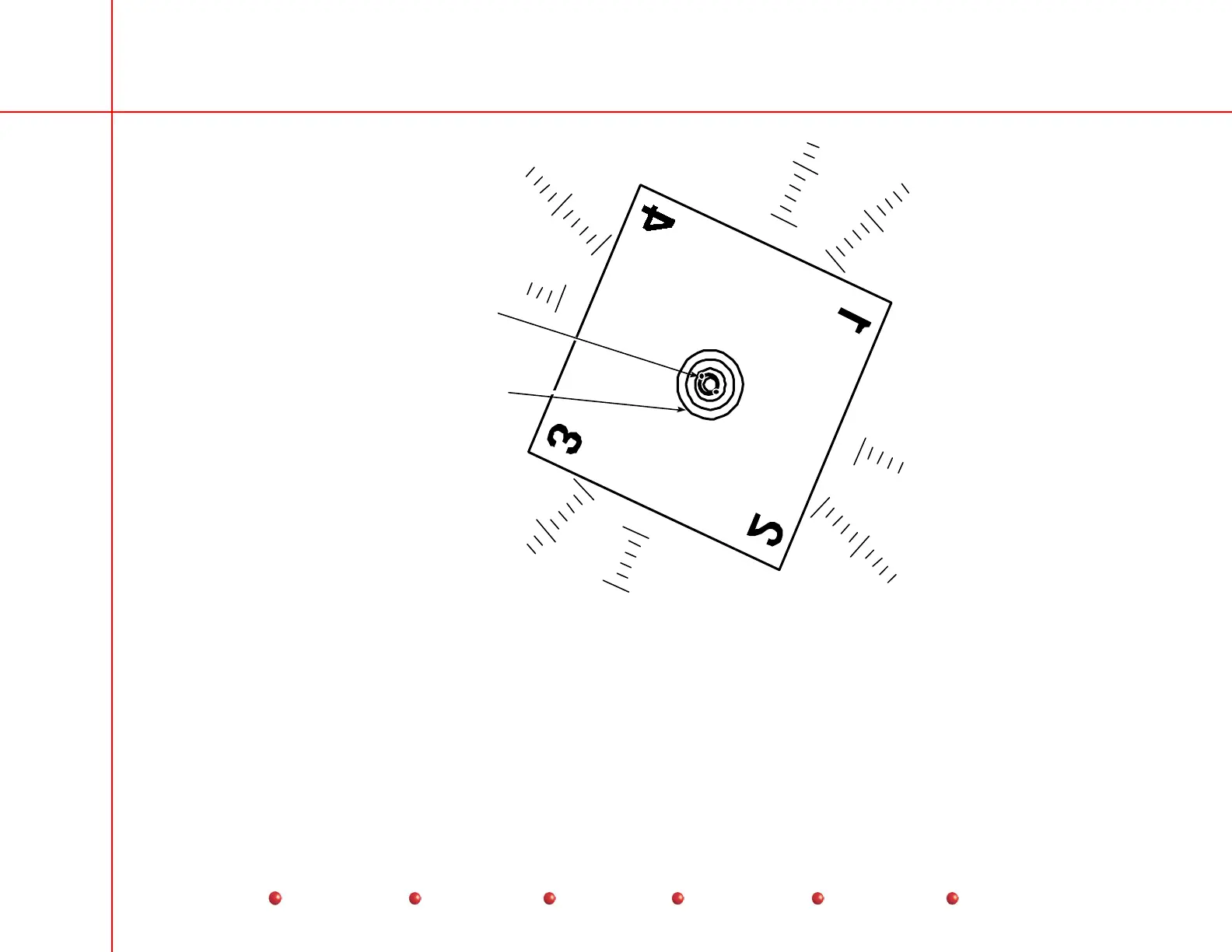

Mark made with
the camera in
the full CCW position.
Verify that the center
of the alignment tool
does not deviat e
outside of the largest
ring while rotating the
camera to the
full CW position.
Verifying Camera Decentration
51
Service Periodic Maintenance
