OEC 9800C-Arm - Page 338

Calibration

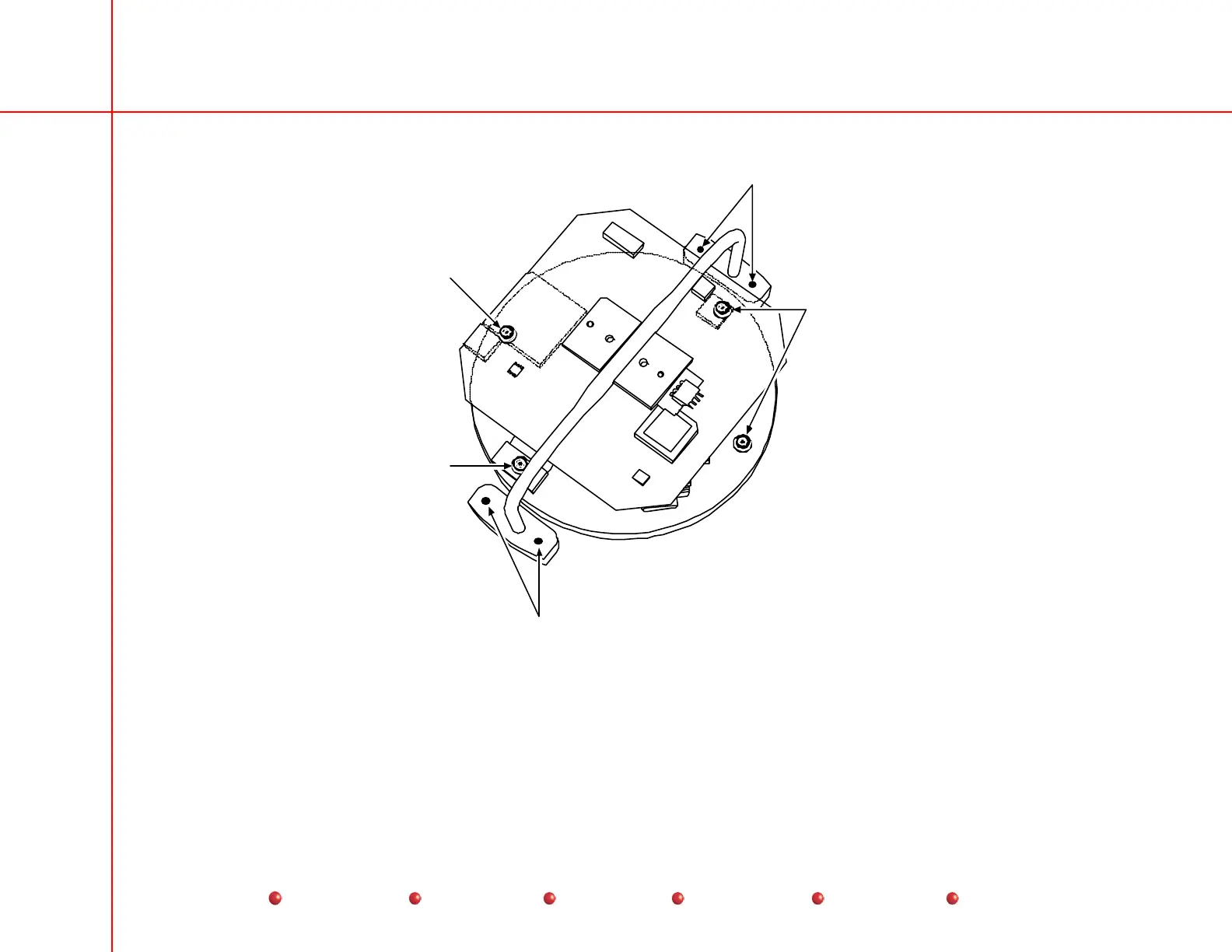

Screws securing
the camera
cent ering
mechanism
Screws securing the
TEC cooling bar
Screw securing
the camera
heat sink
strap
Screw securing
the camera
centering
mechanism
Screws securing the
TEC cooling bar
Loosen But Do Not Remove These Screws
j. While making a Fluoro exposure adjust the camera decentration screws to align the rotational center of the camera to
the center of the beam alignment tool as indicated in the following picture.
54
