Replacement
4. Carefully pull Control Panel away from Vertical Column.
5. Disconnect and tag all wires.
Note: Display and Keypad in Control Panel are held in place by screws and are both field replaceable Use Loctite 454 and
accelerator when reassembling.

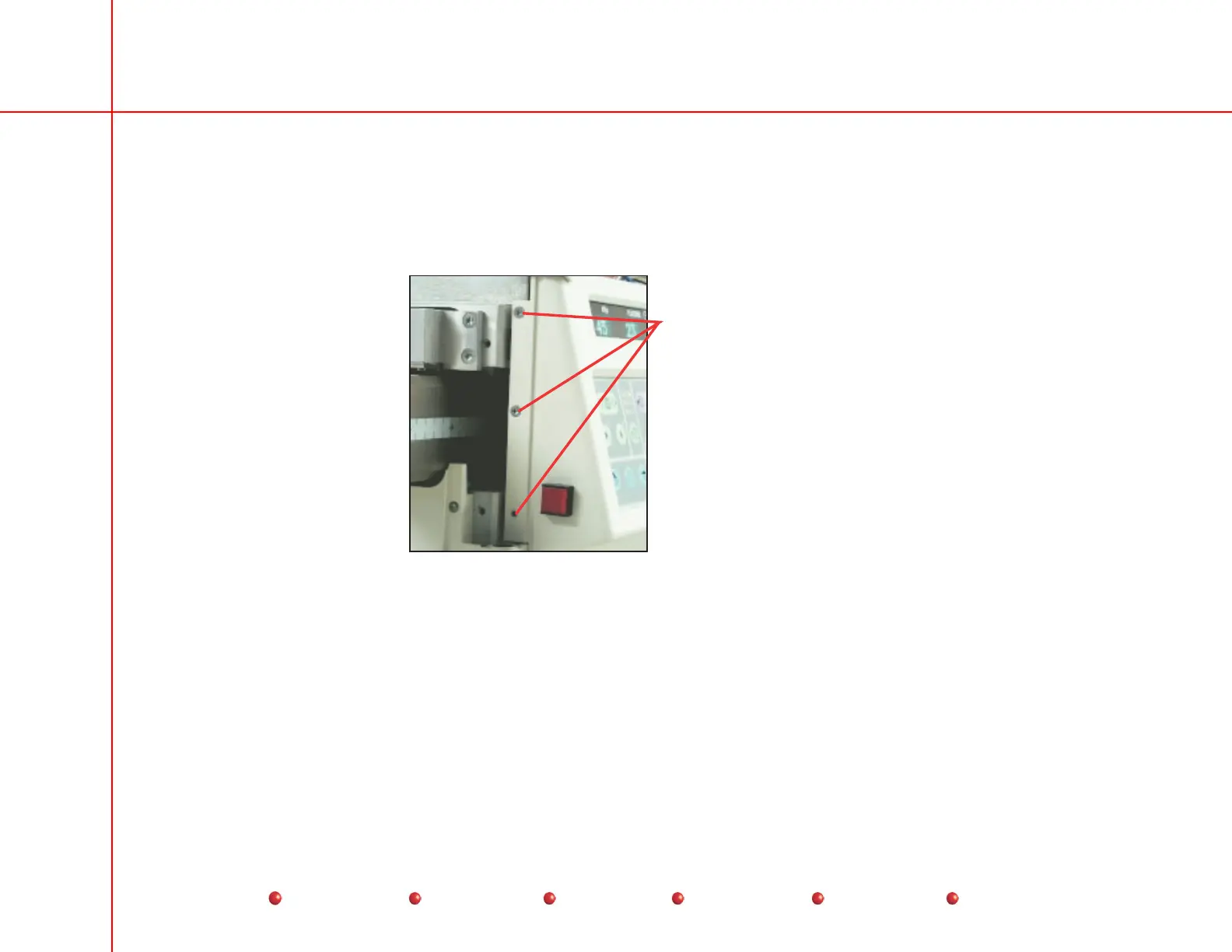

Remove six screws
(Three on each side of panel)
Control Panel Cover
Circuit Breakers and Fuses
This section describes how to access and replace field serviceable circuit breakers and fuses in the C-Arm.
Replacement procedures are not provided for fuses that mount in familiar snap-in or cartridge holders on printed circuit boards or
electronic modules. Capacity and physical size information for these devices is included, however.
Note: Some protective devices on PCBs are soldered in place are therefore not field replaceable
17
