Replacement

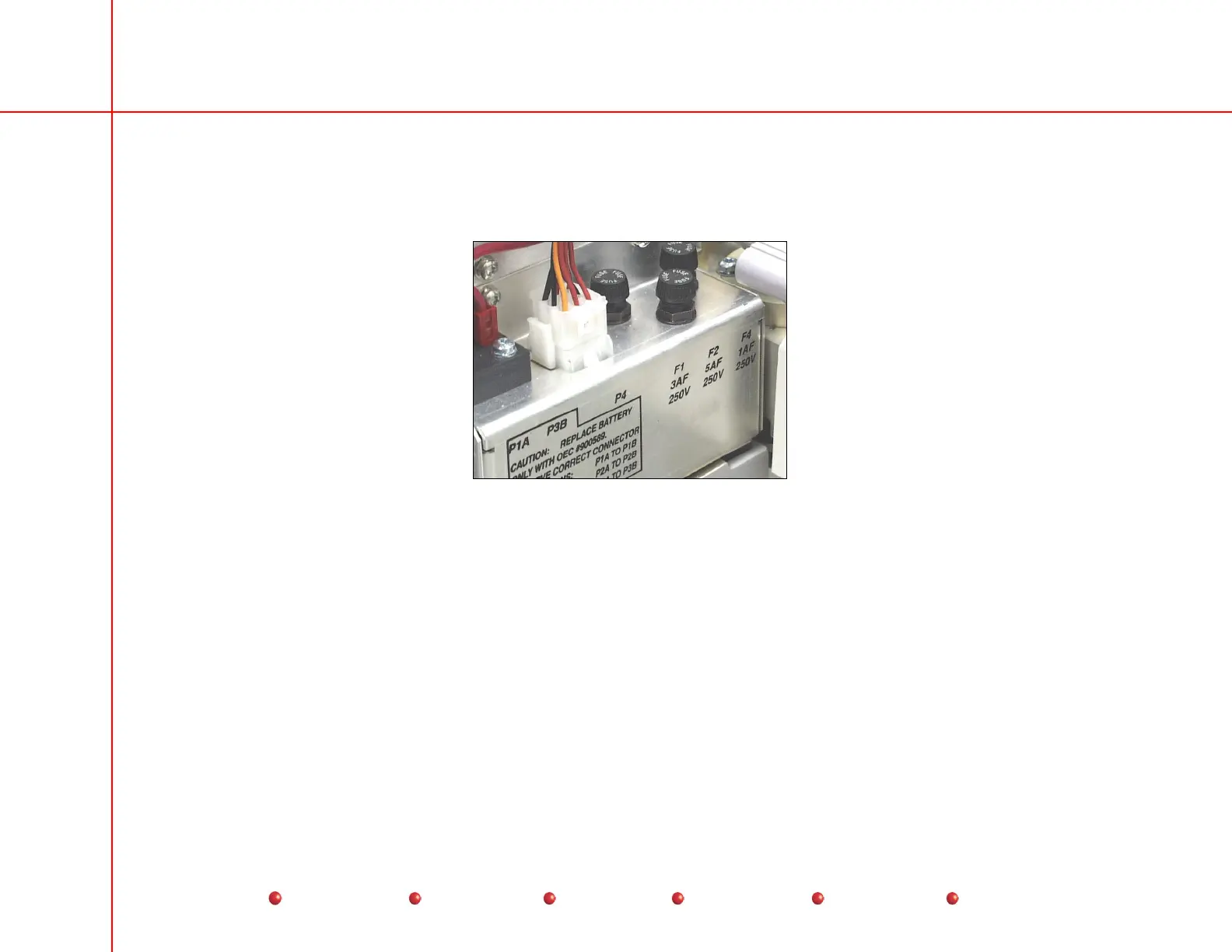

Fuses F1, F2, and F4
The three Capacitor/Power Module fuses F1, F2, and F3 are 250-Volt, 1/4 by 1-1/4 inch, fast blow glass cartridge types. You can
examine any of these fuses by unscrewing the appropriate fuse cap and withdrawing the suspect fuse.
Fuses F1, F2, and F4
Always use an ohmmeter to check a fuse for continuity. A fuse that passes visual inspection may be faulty. Replace any
defective fuse with another fuse of the same type, capacity, and physical size. If a fuse checks OK with a meter but still looks
burned or otherwise damaged, replace it anyway.
F1 protects the output of the Battery Charger. F1 is rated at 3 Amps.
F2 protects the CAP_POS capacitor charging line to the Filament Driver PCB. F2 is rated at 5 Amps.
F4 protects the BAT_POS_F4 battery charge sense line to the Filament Driver PCB. F4 is rated at 1 Amp.
Stator Capacitor/Transformer Assembly
CB2 mounts on the top side of the Stator Capacitor/Transformer Assembly as shown in the following illustration.
