Replacement

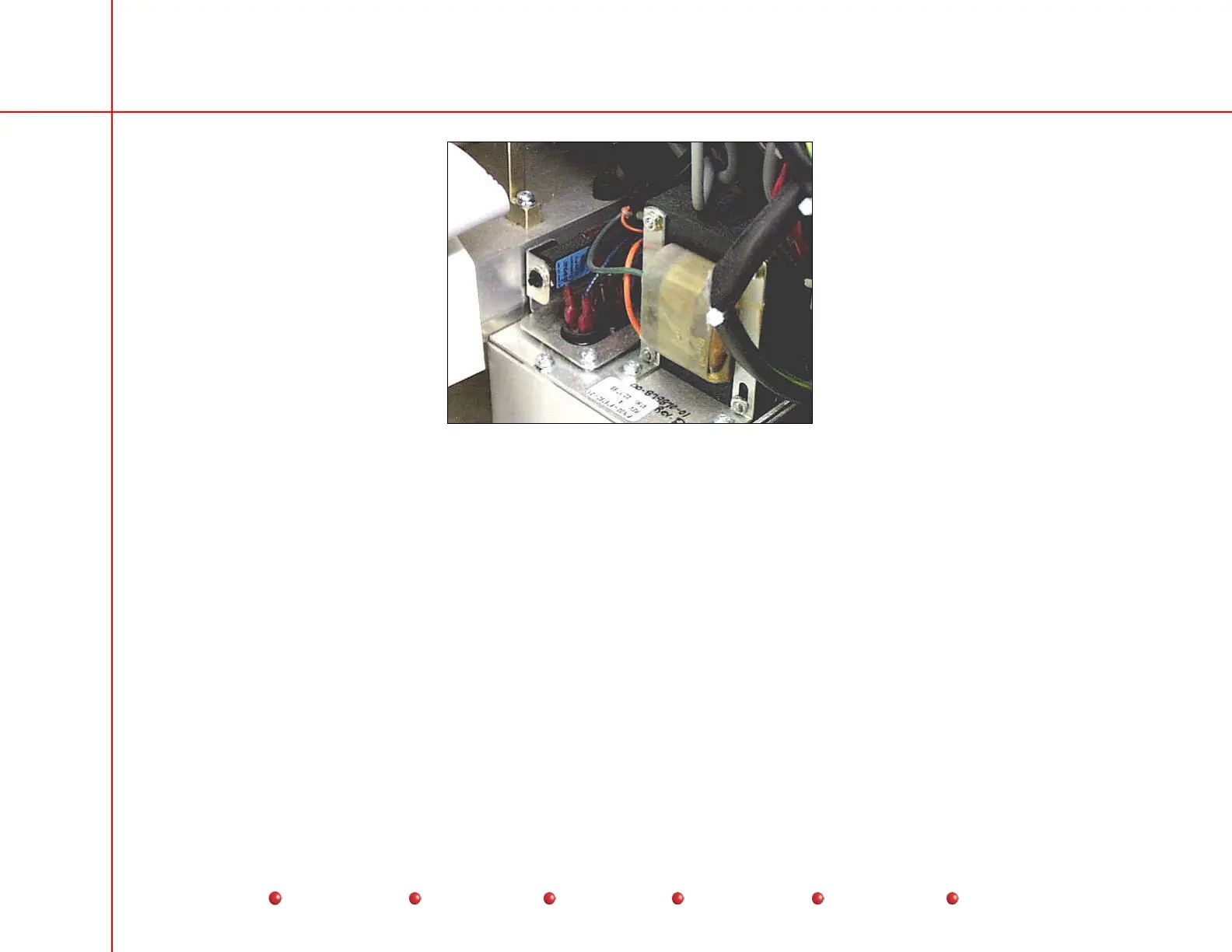

Circuit Breaker CB2
CB2 is a 1-Amp breaker that protects the XFMR_115VAC line to Stator Transformer T3. Use the following procedure to replace
CB2:
1. Disconnect Workstation power plug from AC source.
2. Remove C-Arm's Left Side cover.
3. Remove attaching hardware that secures CB2 to Stator Capacitor/Transformer module. Retain attaching hardware for
reuse.
4. Withdraw CB2 from its mounting spot.
5. Disconnect and tag wires from CB2.
6. Connect wires you removed in step 4 to replacement circuit breaker.
7. Mount replacement circuit breaker on Stator Capacitor/Transformer module. Secure replacement breaker with attaching
hardware you removed in step 3.
23
