OEC 9800C-Arm - Page 461

Replacement
X-ray Tube

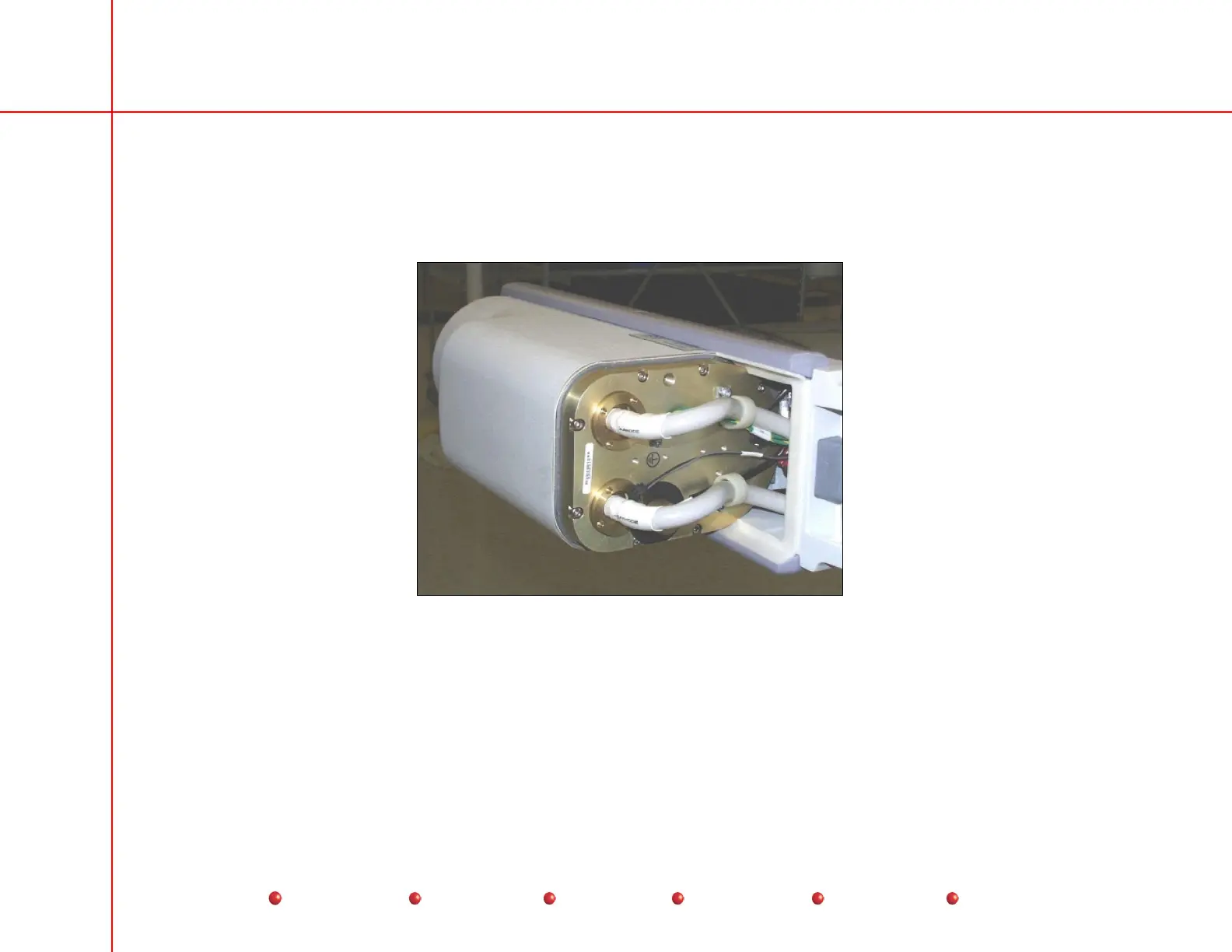

The X-ray tube mounts on the C-Arm opposite the Image Intensifier. The following illustration shows a view of the tube and High
Voltage cables.
X-ray Tube Assembly
WARNING: Failure to install the C-Arm Safety Bolt may allow the gas spring to rotate the L-Arm
very quickly and very forcefully when you remove the X-ray Tube. This could result in
serious injury or equipment damage.
