Replacement
WARNING Lethal high voltage is present on the X-ray tube and high voltage cables, even when
system is turned off. Be sure to turn system off and carefully discharge high voltage
from cables before working near X-ray tube or cables.
Follow these steps to remove the X-ray tube:
1. Turn off Workstation and remove its power plug from facility's AC outlet.
2. If your system is not a Super C, install C-Arm Safety Bolt. Follow the procedure provided elsewhere in this chapter.
3. Remove the Collimator. Follow the procedure provided elsewhere in this chapter.
4. Position the C-Arm so that it is vertical with the X-ray tube on top. Then perform an orbital movement of the C so that X-ray
tube's mounting bolts are accessible and X-ray tube is about waist high.

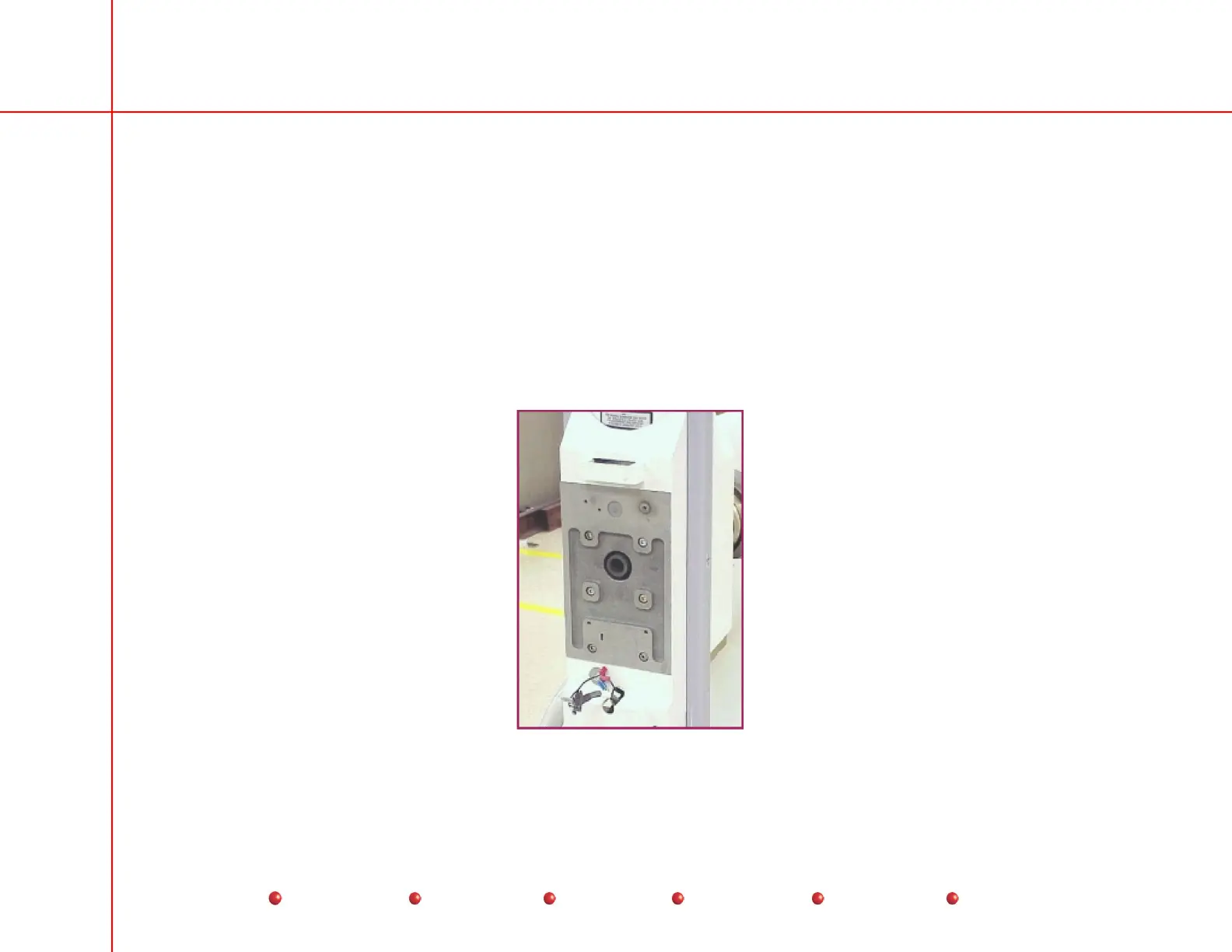

X-ray Tube Positioned for Removal
92
