Replacement
Cross Arm Brake

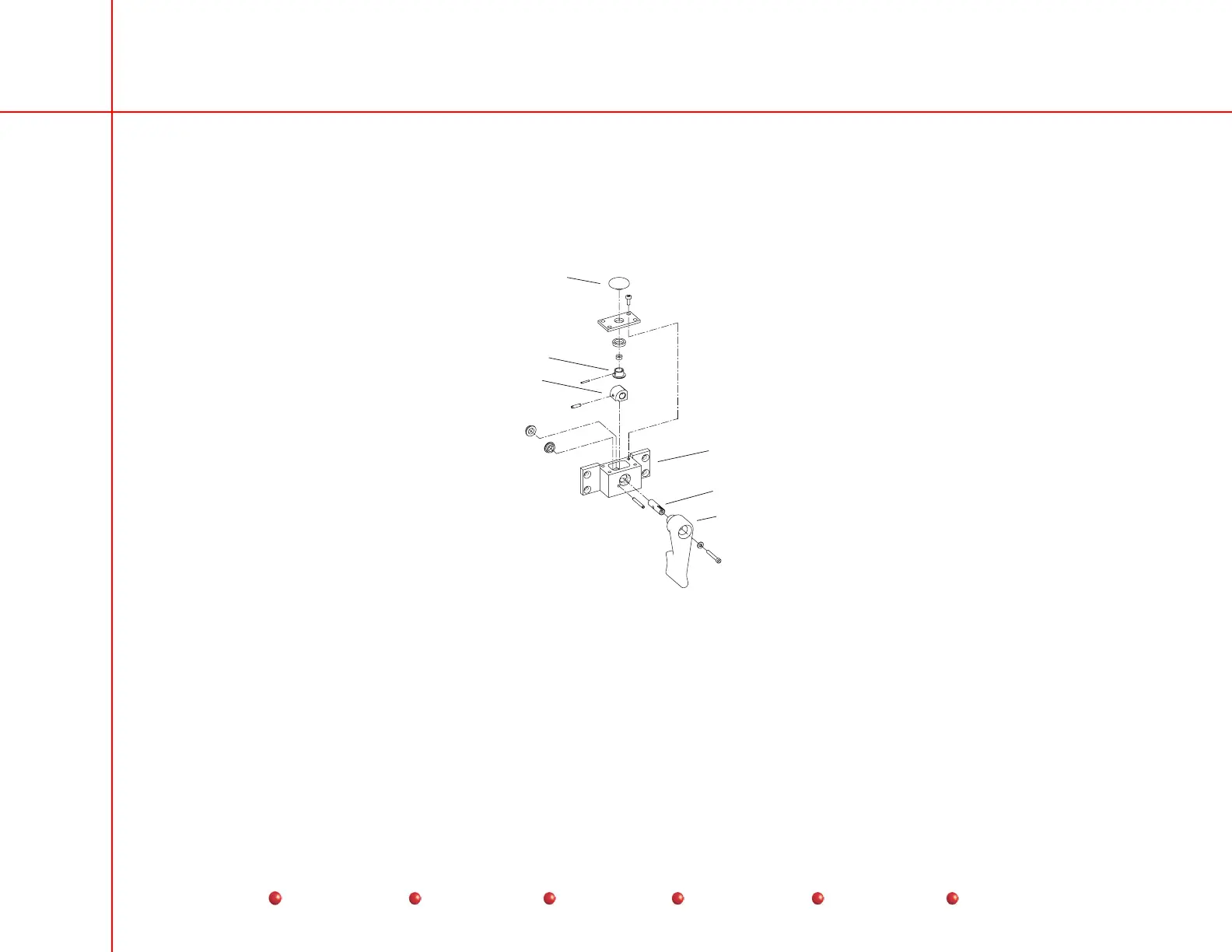

The following illustration shows the Cross Arm brake assembly. Setting the Cross Arm brake engages a brake pad that restricts
the movement of a bearing in the Cross Arm housing. This prevents the Cross Arm from moving.
Brake Pad
Cam Follower
Cam
Brake Mount
Brake Shaft
Brake Handle
Cross Arm Brake Assembly
Follow these steps to replace the Cross Arm brake pad:
1. Remove the hole plug in the Cross Arm Brake Handle.
2. Remove the torx screw that secures the Cross Arm Brake Handle to the Brake Shaft.
3. Remove Cross Arm Bearing cover as described elsewhere in this chapter.
5. Remove four Torx screws that secure the Cross Arm Brake Mount to the Cross Arm Bearing housing.
