OEC 9800C-Arm - Page 471

Replacement

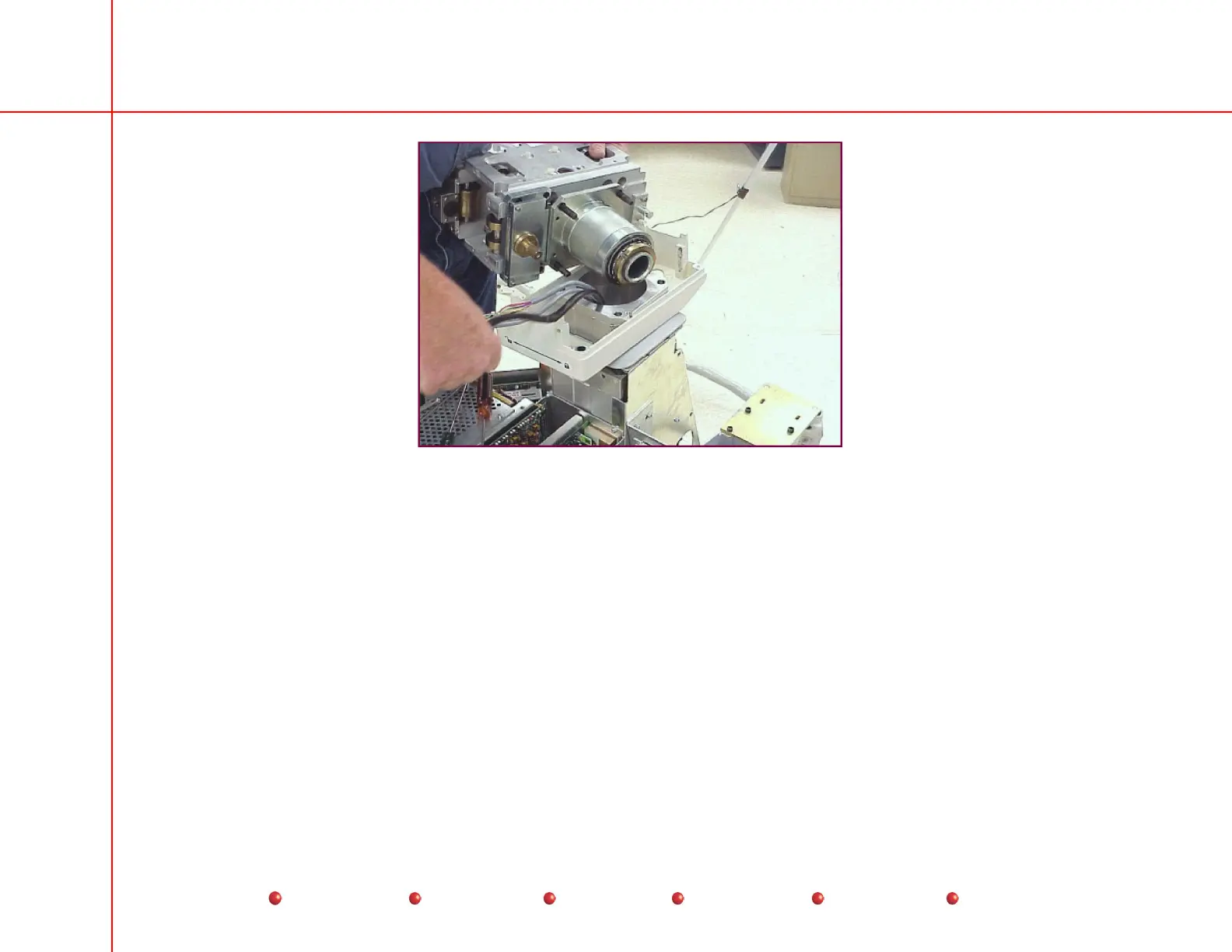

Lifting Bearing Block from Vertical Column
Note: To remove a bearing from the Bearing Block: (a) Loosen the corresponding set screw that secures the shaft. The set
screw is recessed into the Bearing Block and secures the shaft in place. Each bearing assembly has 1 set screw. (b)
Remove the retaining rings from both sides of each bearing and pull the shaft out. (c) Replace the bearing(s).
