Replacement

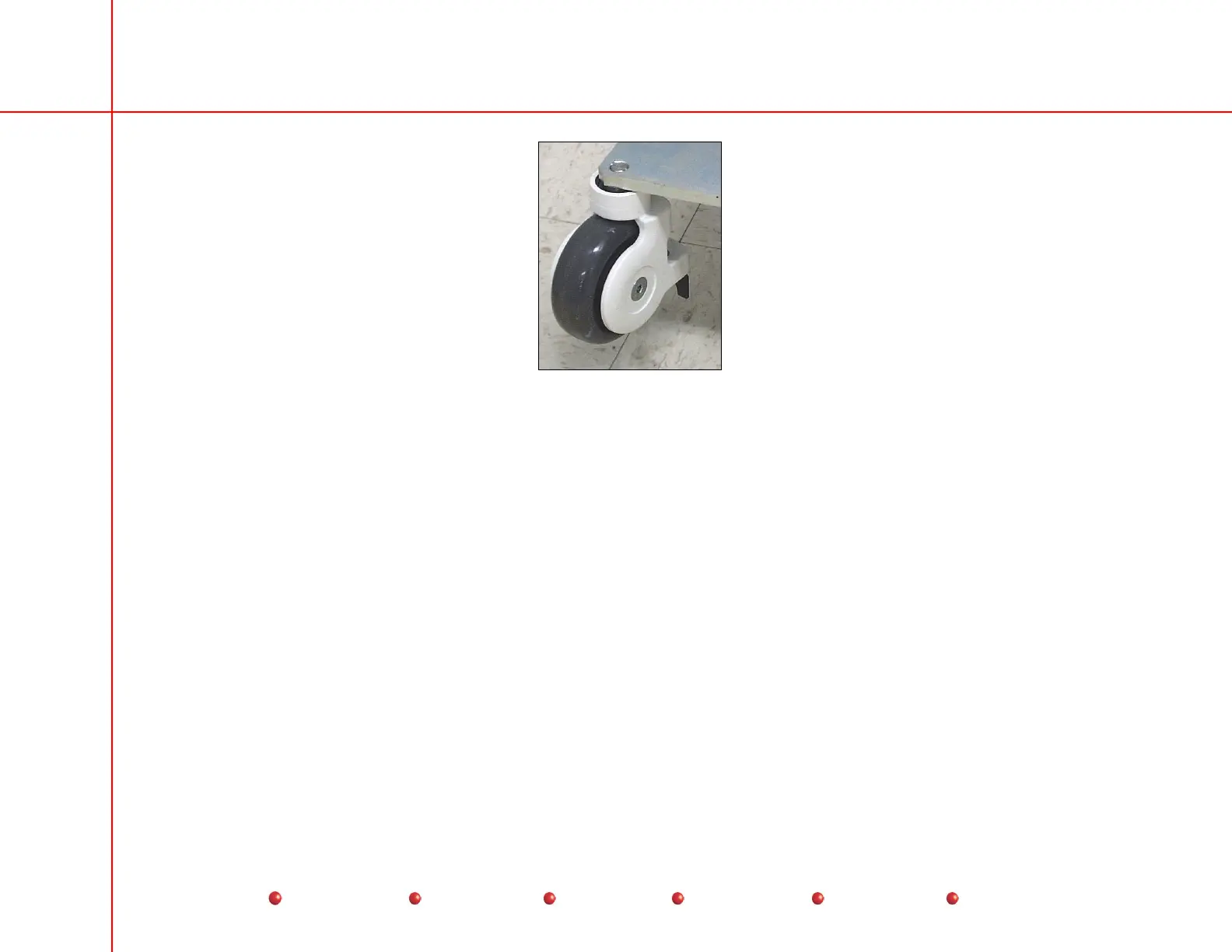

Front Caster
To replace a caster wheel:
1. Jack the mounting plate edge nearest the damaged wheel. Get the wheel about half an inch off floor.
2. Carefully remove the adhesive cover that conceals the axle screw. Retain the cover for reuse.
3. Use a hex key to loosen the axle.
4. Remove the axle and the damaged wheel.
5. Install replacement wheel and secure the axle.
6. Reinstall adhesive axle cover over axle screw.
To replace a cable pusher.
1. Jack mounting plate and remove the associated wheel as just described.
2. Remove torx screws that secure damaged cable pusher.
3. Install replacement cable pusher using screws removed in step 2.
