Replacement
To replace caster parts other than wheels or cable pushers, you must replace the entire Front Caster assembly. Remove the four
hex keyed bolts shown in the above illustration and install a new Front Caster assembly. Refer to the Illustrated parts manual for
the current part number.
Generator Tray
The following paragraphs describe how to replace the Generator Tray:
1. Remove five screws that secure the L-shaped Generator Tray to C-Arm chassis.
2. Lift Generator Tray from chassis.

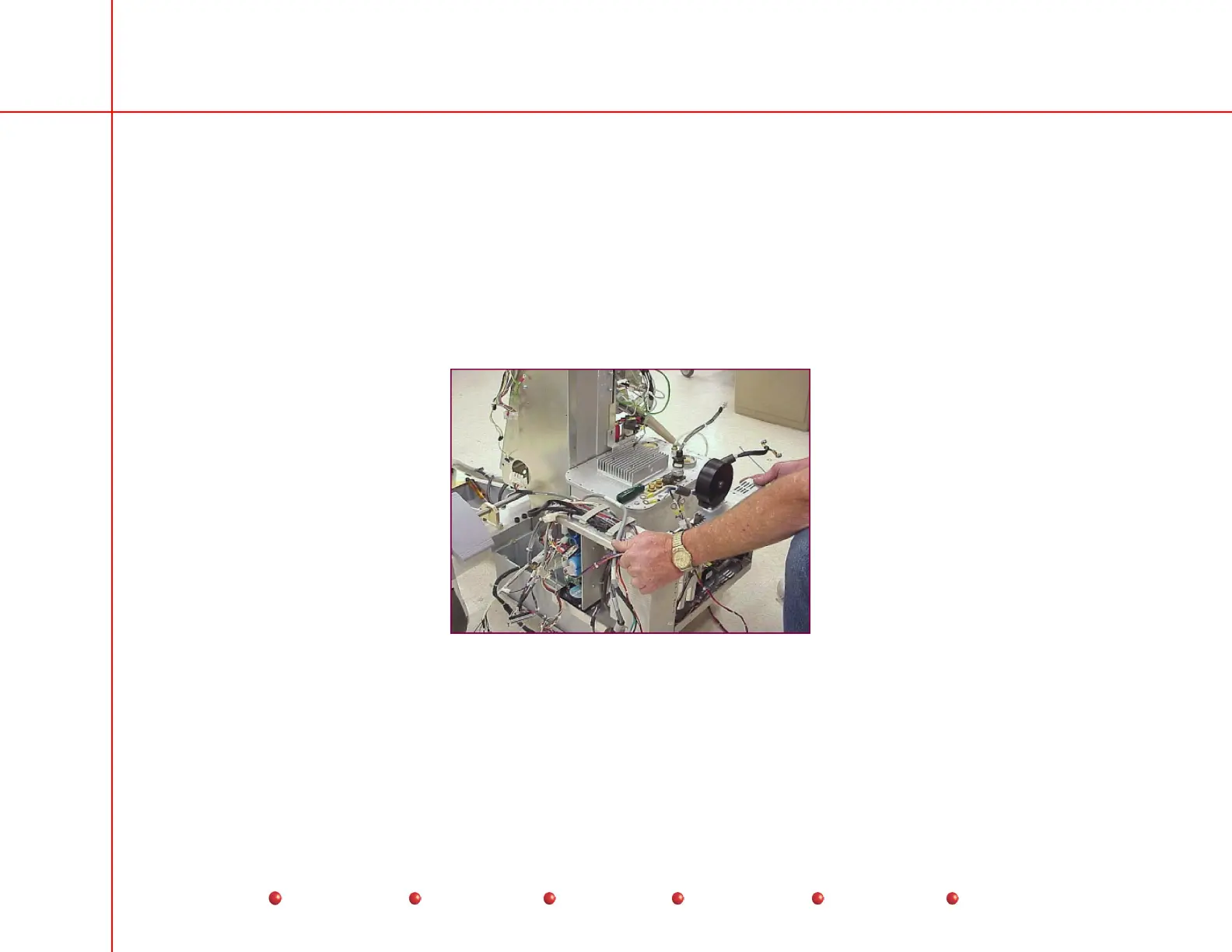

Generator Tray Removal
