Replacement
Orbital Brake
This section describes the replaceable components associated with the Orbital Brake.

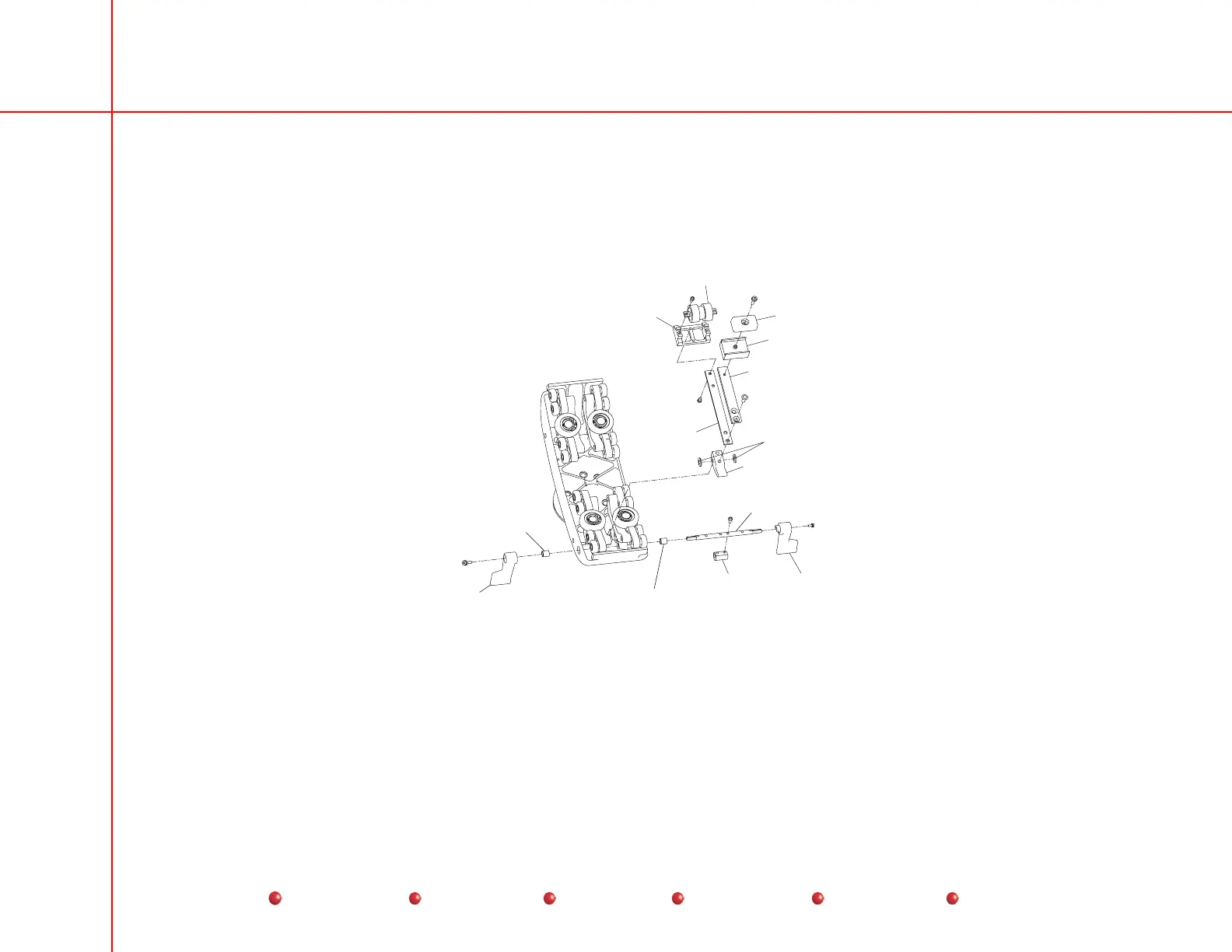

The following illustration is an exploded view of the C-Arm’s Orbital Brake assembly.
Brake Pad
Brake
Brake Arm
Roller Spring
Washers
Brake Handle
Brake Pivot
Brake Shaft
Brake Cam
Cylinder Bearing
Brake Handle
Friction Clutch
Roller Yoke
Cylinder Bearing
Orbital Brake Assembly
If the Orbital brake does not prevent C-Arm orbital rotation, you must replace the Brake Pad. There are no brake adjustments.
Follow these steps to replace the brake pad:
1. Remove the C-Arm.
2. Remove the screw that secures the Brake Pad.
