Replacement
3. Replace the Brake Pad.
Power Panel Assembly
1. Remove eigh screws that secure the L-shaped Generator Tray cover.
2. Disconnect all wires, plugs, twist-on connectors, sub-D, etc.
3. Disconnect E1 and E2 terminals from the H.V. Tank.
4. Disconnect wire terminals from the H.V. Capacitors.
5. Separate the cables between the Power Panel Interface PCB and the Generator Tray.
6. Disconnect and route cables from Power Panel Door.
7. Disconnect cables from Power/Motor Relay PCB and pull the cables through. This is done so major assemblies can be
removed intact.

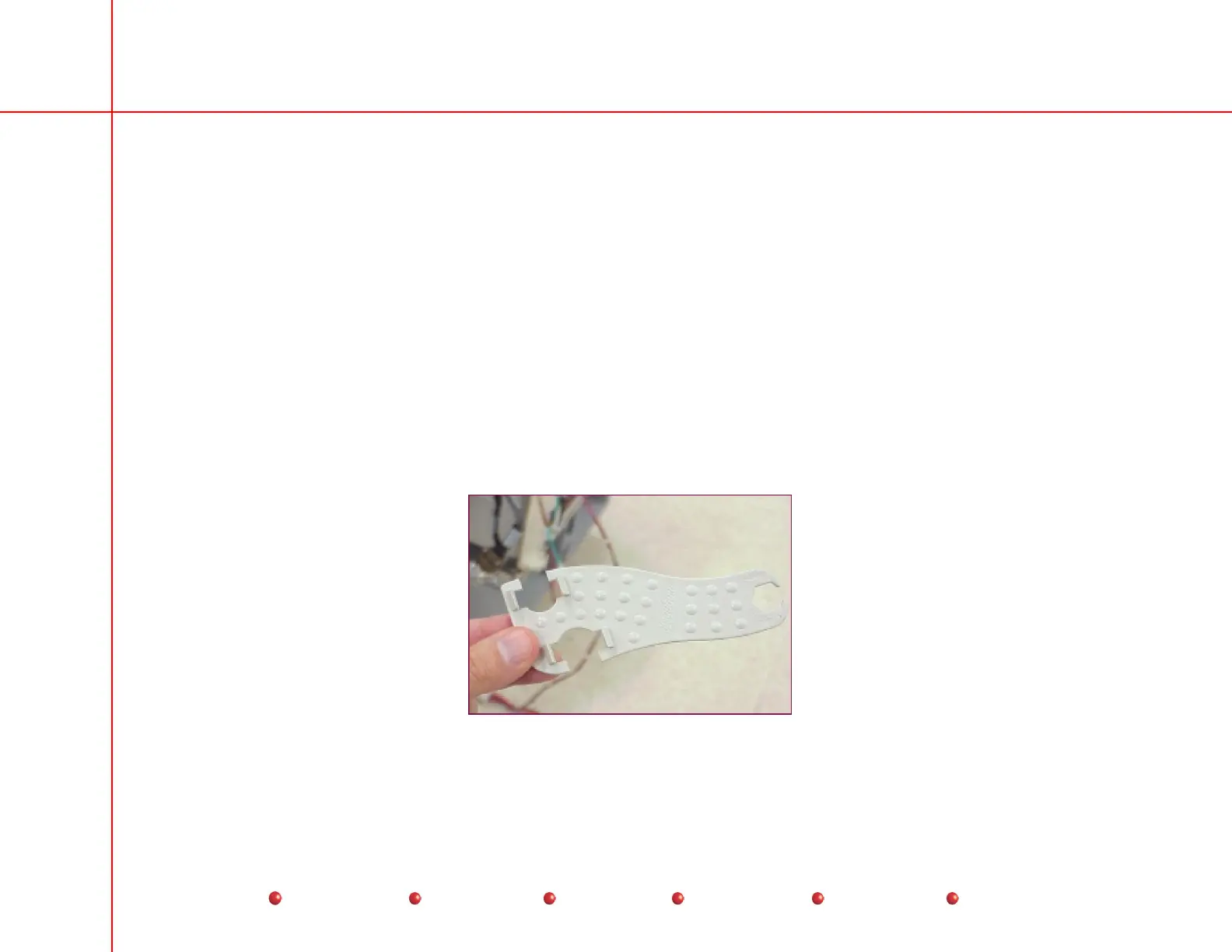

8. Disconnect jack Plug from the Vertical Column Power Supply using the specialized “Magnetic Wrench” shown next.
Magnetic Wrench
9. Remove 4 screws securing the Power Panel Assembly to the Vertical Column Bracket.
112
