Replacement

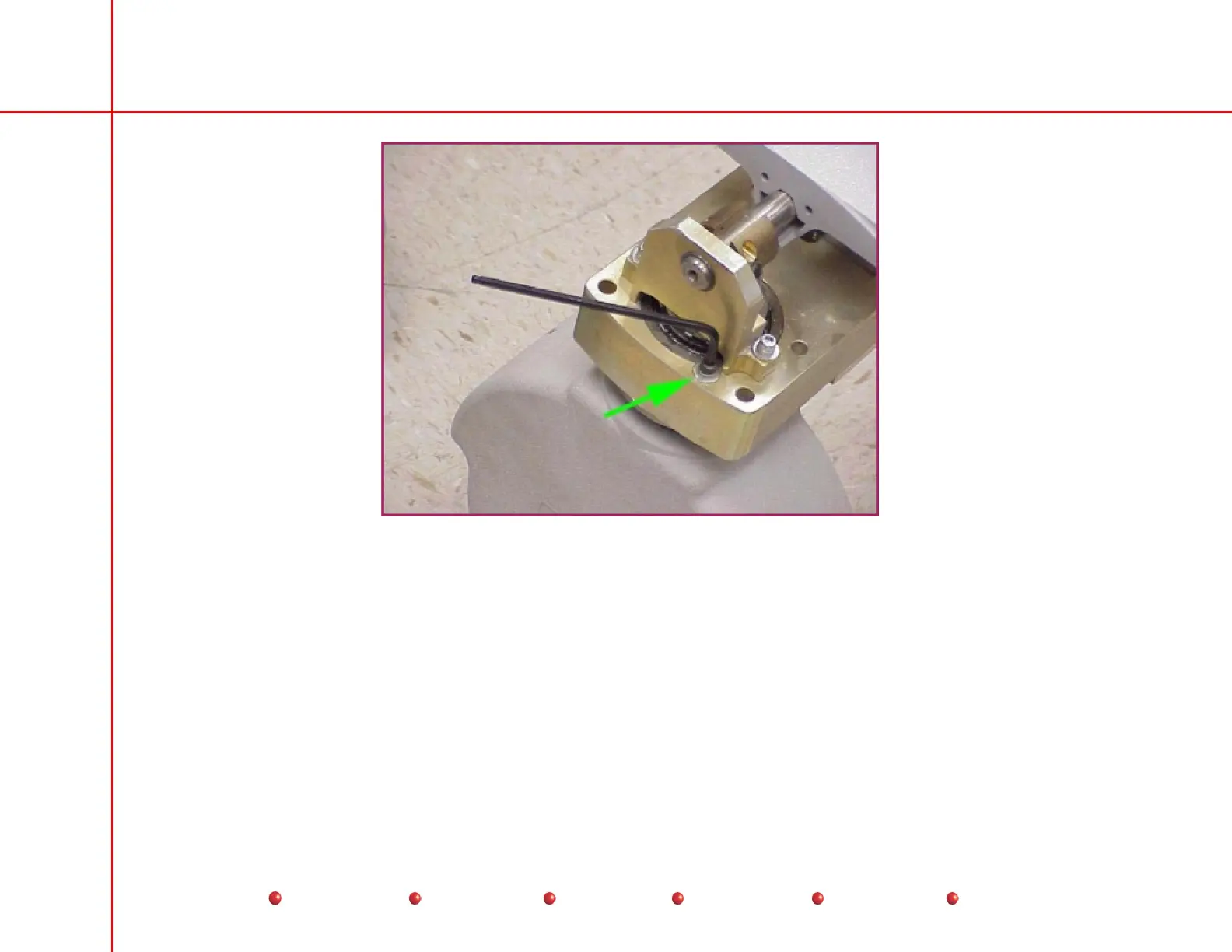

Allen Screw Removal
6. Remove the caster from the axle.
Roller Bearing Assembly
The following paragraphs describe how to remove a Roller Bearing Assembly, which is part of the Flip Flop Assembly.
The Axial or Radial Roller Bearings are replaced as a part of the Roller Bearing Assembly. The assembly can be replaced after
the C-arm has been separated from the Flip-Flop Assembly.
1. Loosen the set screw that secures the Toggle Arm Pivot Shaft.
2. Pull the Toggle Arm Pivot Shaft out.
