OEC 9800C-Arm - Page 486

Replacement

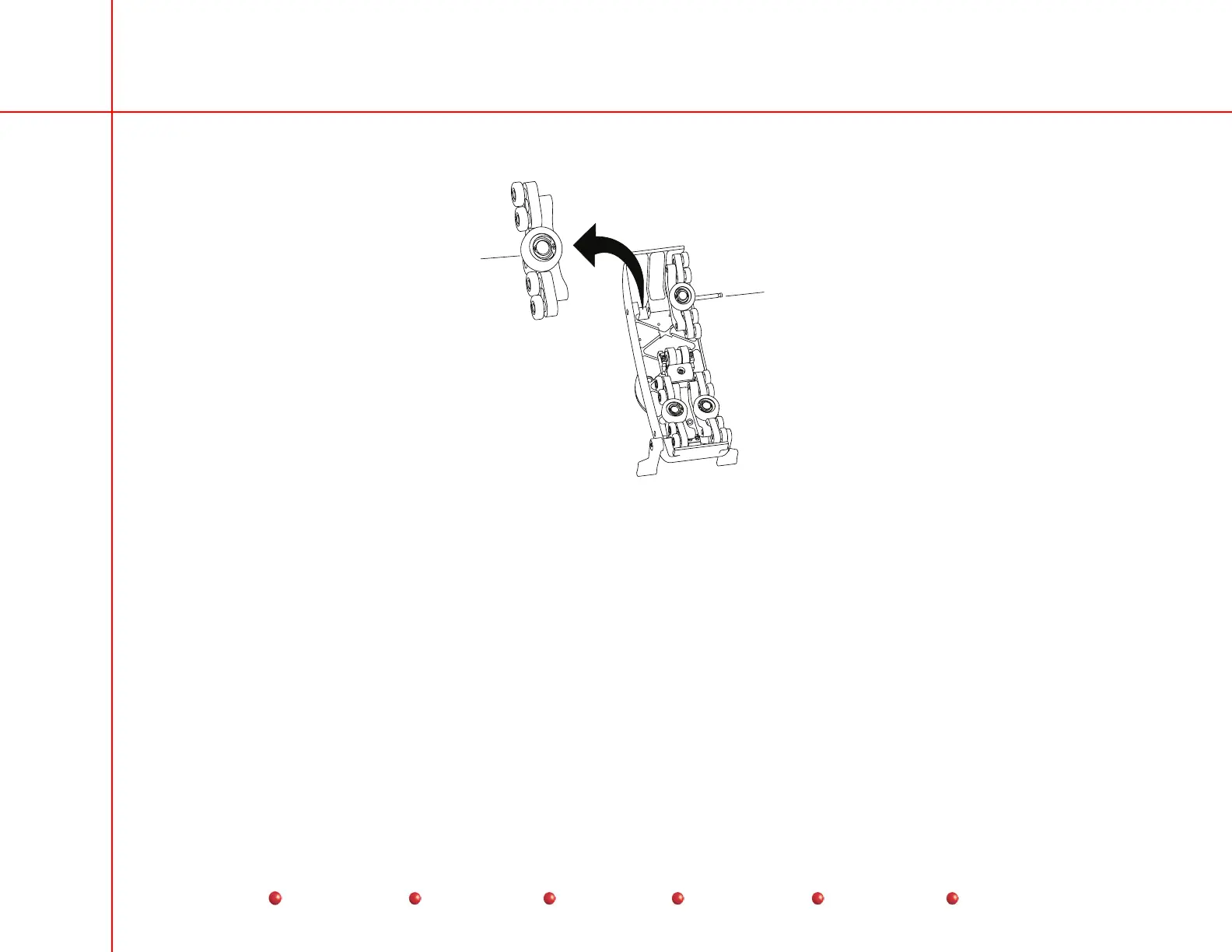

3. Remove the Roller Bearing Assembly.
Roller
Bearing
Assembly
Toggle Arm
Pivot Shaft
Roller Bearing Assembly Removal
Vertical Column
Note: You must remove all assemblies that surround the Vertical Column and all assemblies that mount on top of the Vertical
Column before you can remove the Vertical Column itself.
1. Stand the Mobile C-Arm’s Frame up on end as shown in the following photograph.
