Replacement
Wig Wag Brake

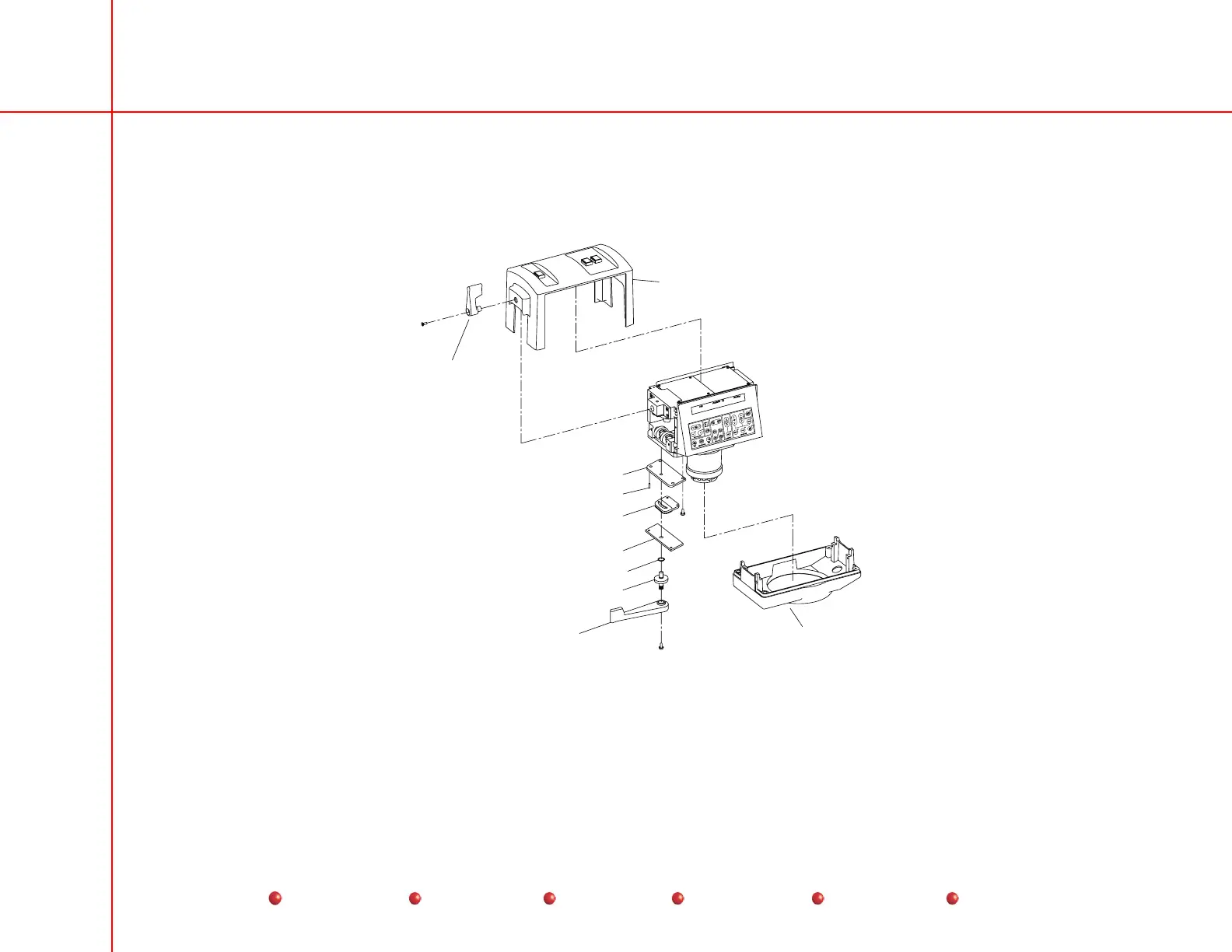

The following illustration shows the Wig Wag brake assembly.
O-ring
Wig Wag Brake Handle
Brake Actuator
Floating Plate
Brake Pad
Dowel Pin
Fixed Plate
Bearing Block
Cover
Cross-arm
Brake Handle
Bearing Block
Lower Cover
Wig Wag Brake Assembly
To replace the Wig Wag Brake pad it will be necessary to remove the Bearing Block. Perform the following steps:
Note: There is not enough clearance to remove the Wig Wag Brake Pad without removing the Bearing Block.
119
