2800 Table/Generator Functional Block Diagrams
40
Service Periodic Maintenance
Contents
Schematics Illustrated Parts Installation

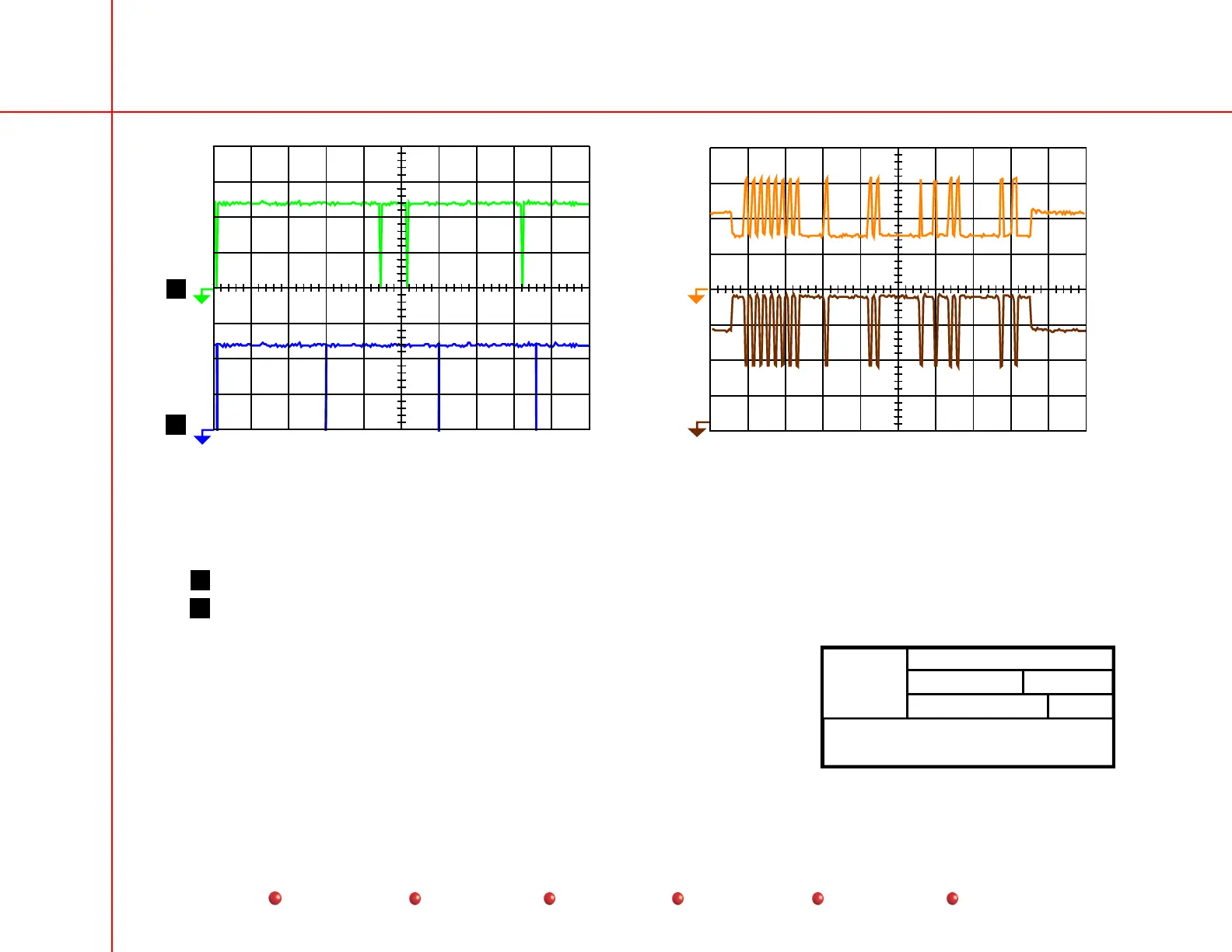

Active condition, buttons pressed on Control Panel.
ARC_INT*
2 V/div dc
2 ms/div
ARC_INT*
2 V/div dc
5 s/div
Idle condition, no buttons pressed on Control Panel.
ARCNET_LO
1 V/div dc
2 us/div
ARCNET_HI
1 V/div dc
2 us/div
1
2
1
2
Page 6 of 6
System Communications
ARCNET Signals
07/01
2800
GE OEC Training
SYSCOMM.DS4
g
System Communications –ARCNET Signals
