24"/30" OUTDOOR OSCILLATING
WALL MOUNT FAN

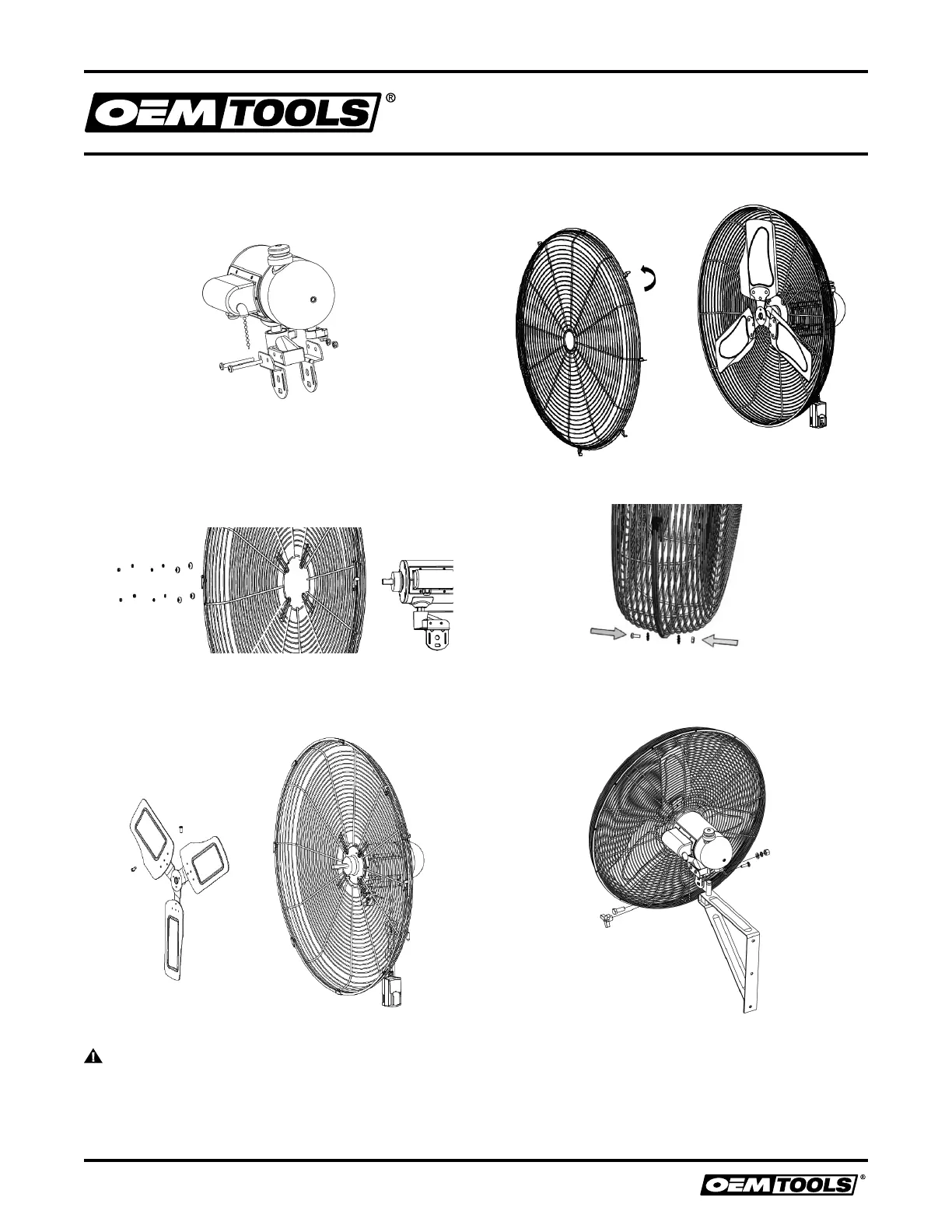

3. Place a Fixed Adapter on both sides of the motor
base extension. The Adapters should taper at the
center, leaving a small gap. Fasten securely (using the
provided hardware).
Assemble the rear grill.
Assemble the blade.
Assemble the front grill.
4. Remove all four sets of hexagonal nuts, spring
washers, and bowl washers from the Motor.
5. Position the Rear Guard over the Motor and secure it,
using the hexagonal nuts, spring washers, and bowl
washers removed in Step 4.
Assemble the rear grill.
Assemble the blade.
Assemble the front grill.
6. Fasten the Fan Blade to the Motor Shaft by tightening
the two fan blade screws. Ensure the screws are
securely tightened.
Assemble the rear grill.
Assemble the blade.
Assemble the front grill.
WARNING: Fully assemble the front guard to the
fan prior to attempting to start the fan. If the fan blade is
loose, the blade may become displaced from the motor
shaft causing product malfunction, property damage, and
personal injury.
7.
Place the Front Guard over the Rear Guard. Fasten
together using the clips along the rim of the Front Guard.
7. assemble the fan head to the mounted
.
8. Secure the Guard Assembly by fastening the retaining
bolt, lock washers, and nut.
9. Attach the completed Fan Assembly (Step 8) to
the Bracket and Swivel Adapter Assembly (Step 2)
using the provided bolt and nut assembly. Fasten the
Handwheel with Bolt into the lower square hole.
7. assemble the fan head to the mounted
.
10. Attach the Motor to a heavy fixed object (capable of
supporting the weight of the fan) using the safety cable
and provided U-bolts. If the fan dislodges from the
mounting bracket for any reason, the safety cable will
prevent the fan from falling.
NOTE: Ensure the cable does not inhibit the oscillating
range of motion. This can lead to product malfunction.
