Setup
The Model 800 Viscometer is a precision instrument. Any damage to the bob
shaft, bearings, or transducer will greatly aect the accuracy of the readings.
Always handle the Viscometer with care, especially when installing and
removing the bob.
Always remove the bob from the shaft before shipping the Viscometer.
Failure to do so will damage the bob shaft.
1. Connect the instrument to a 13 –16 VDC, current-limited power source.
2. With the instrument turned o, place the splash guard onto the bob shaft
with the tube end pointed up towards the bob. Push up.
3. Screw on the appropriate bob with the tapered end up towards the splash
guard.
4. Place the sleeve onto the rotor over the bob. The threads assure the rotor
will attach evenly and uniformly each and every time.
5. The power switch is located on the back panel. Turn the unit on.
6. Place a properly prepared sample of test uid in a sample cup and
immerse the rotor sleeve exactly to the ll line on the sleeve by raising the
platform. Tighten the lock nut on the platform.

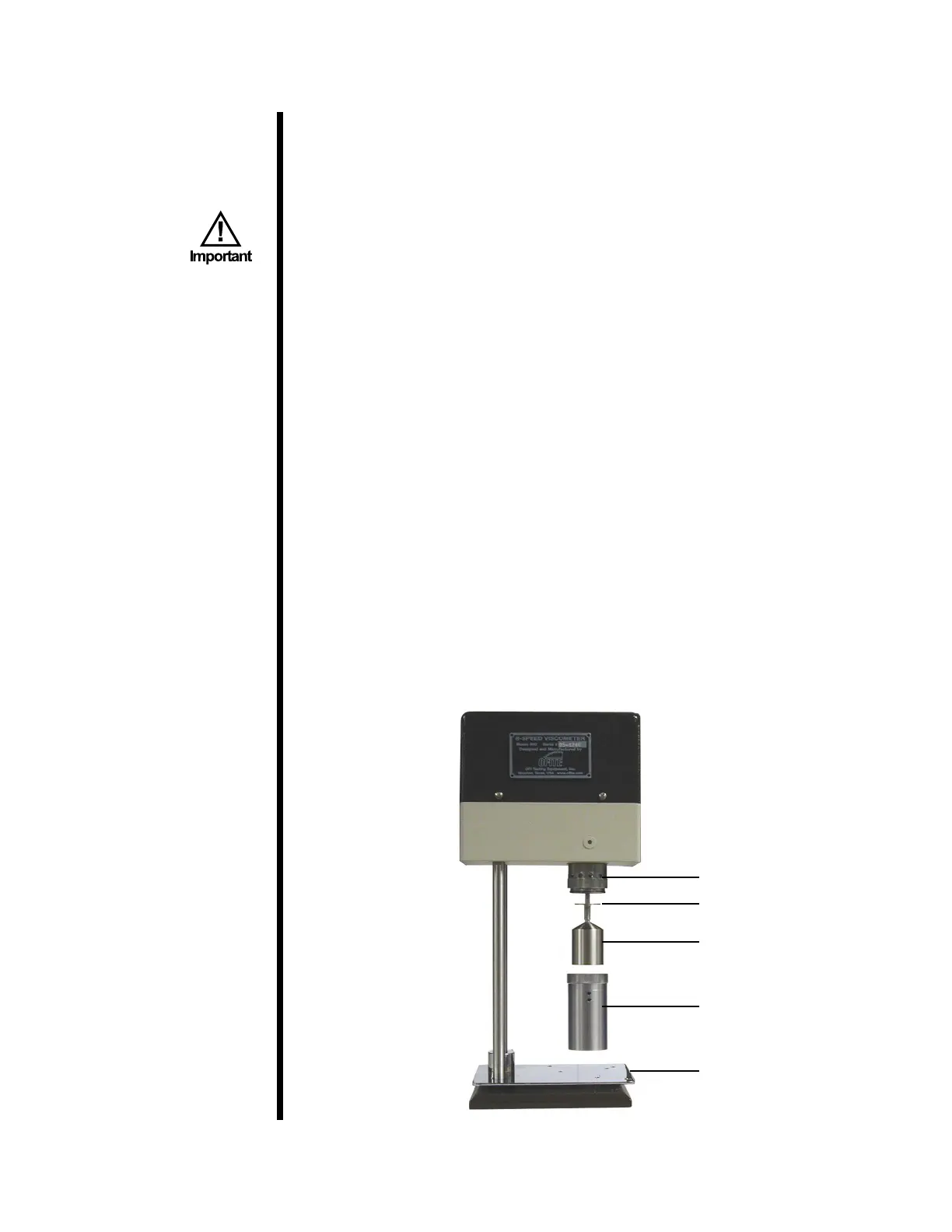

Rotor
Splash Guard
Bob
Sleeve
Platform
