OfiTE 800 - Bob Shaft Bearing and Torsion Spring Replacement

OFITE, 11302 Steeplecrest Dr., Houston, TX 77065 USA / Tel: 832-320-7300 / Fax: 713-880-9886 / www.ote.com 19
5. Loosen the two screws in the top of the Index Block. Pull the Index Block
straight back to prevent damage to the dial or stop pin.
6. Loosen the top set screw on the dial one turn counterclockwise.
7. Gently lift the torsion spring straight up.
Do not stretch the torsion spring.
If you are replacing only the torsion spring, discard the old spring, and
skip to step 21 to complete the process.

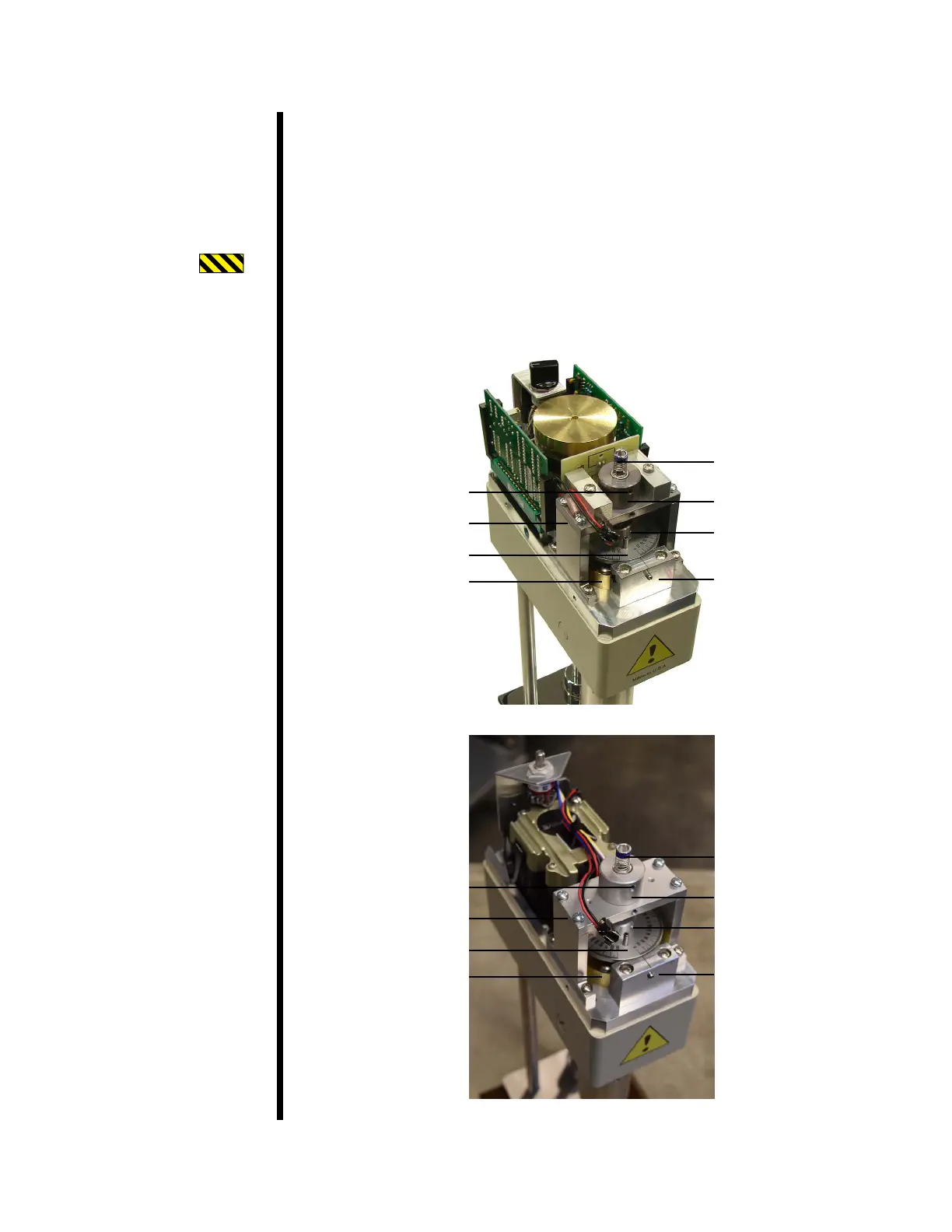

Set Screw (Step 4)
Bridge
Dial
Bearing Mount
Torsion Spring
Zero Calibration Knob
Set Screw (Step 6)
Index Block
Set Screw (Step 4)
Bridge
Dial
Bearing Mount
Torsion Spring
Zero Calibration Knob
Set Screw (Step 6)
Index Block
#130-10 Model
#130-11 Model
