17. Slide the bearing shield back onto the bob shaft and tighten the set screw.
Slide the splash guard onto the bob shaft until in touches the bearing
shield.
The bearing should be able to free spin for up to two minutes. If it
does not, replace it with a new bearing.

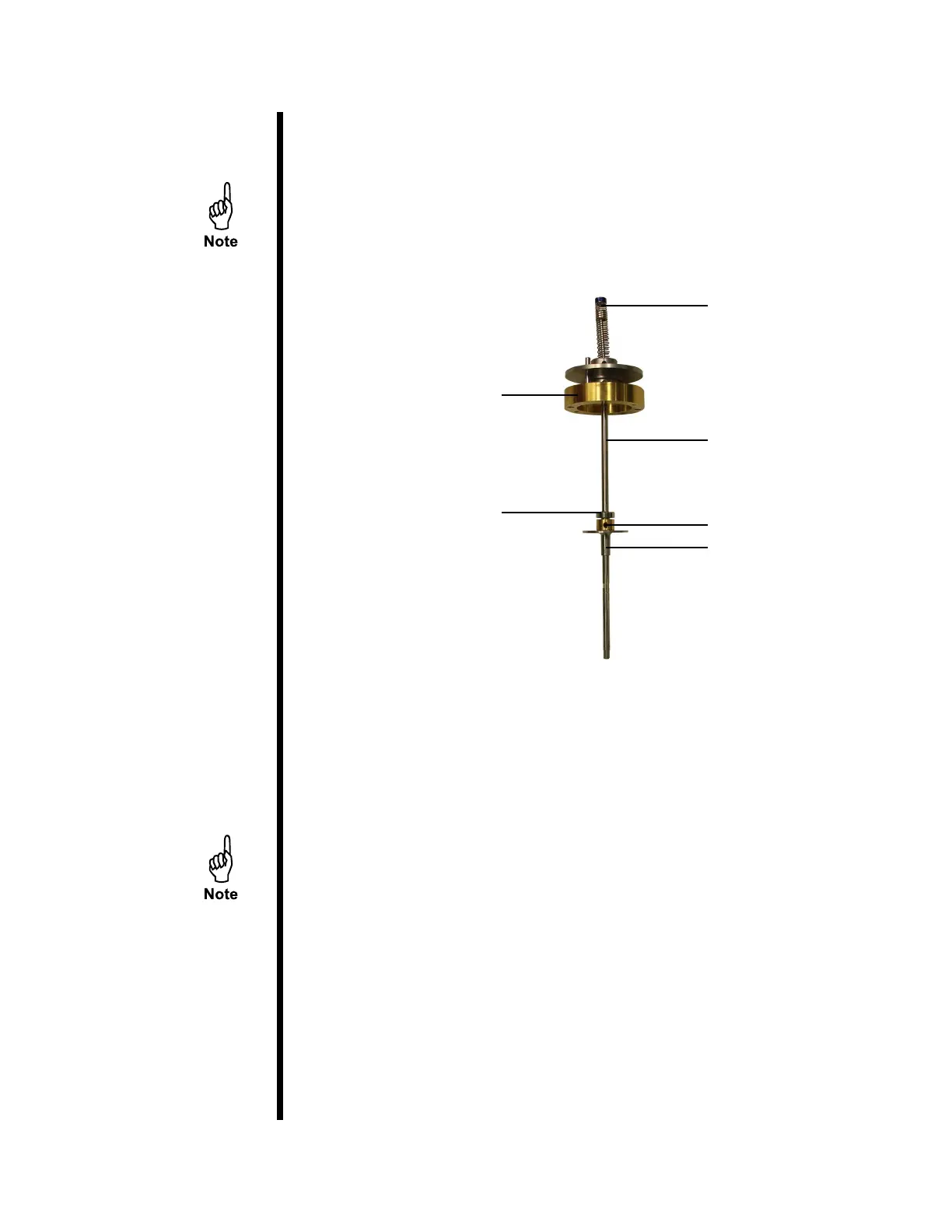

Brass Bearing Mount
Lower Bearing
Torsion Spring
Bob Shaft
Bearing Shield
Splash Guard
18. Slide the bob shaft up through the bearing mount. Turn the bob shaft until
the at portion is facing the front of the unit.
19. Align the bottom set screw on the dial with the at portion of the bob shaft
and tighten rmly. Make sure the set screws are perpendicular to the top
of the bob shaft.
The bob shaft should rotate smoothly without any noise.
20. Replace the bridge being careful not to touch or bend the encoder.
Tighten the four screws. Re-attach the light.
21. Gently slide the torsion spring through the Zero Calibration Knob and into
the dial. Make sure the bottom of the torsion spring is seated properly
inside the dial. Tighten the set screw at the top of the dial to secure the
torsion spring.
22. Slide the index block into place. Tighten the two screws. Make sure the
zero mark on the dial is aligned with the mark on the index block.
