REBUILD AIR SPRING CARTRIDGE

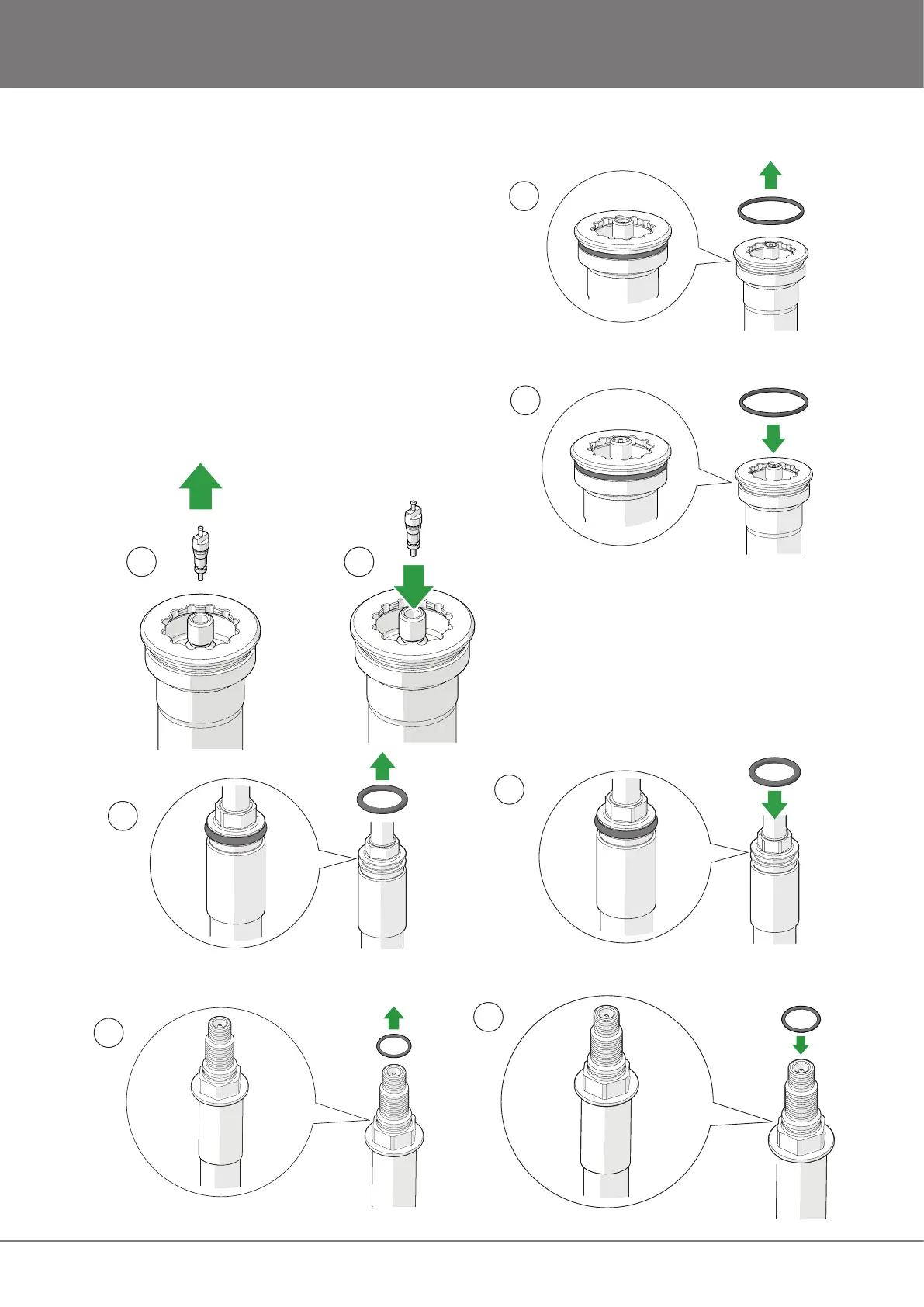

2. Remove the old o-ring (00576-06/00576-23) from the top cap.
3. Install a new o-ring (00576-06/00576-23) on the top cap.
4. Remove the old air valve schrader (18607-01) from the top cap.
5. Install a new air valve schrader (18607-01) into the top cap.
6. Remove the old o-ring (00438-57) from the seal head.
7. Install a new o-ring (00438-57) on the seal head.
8. Remove the old o-ring (18612-04/00338-57) from the base cap.
9. Install a new o-ring on the base cap. For end shaft nut M10 use
18612-04 and for M12 use 00338-57.
