Ohlins MX - Spare parts

11
5
6
7
8
9
11
12
13
14
15
16
18
19
1
2
3
4
17
21
22
23
20
22
10

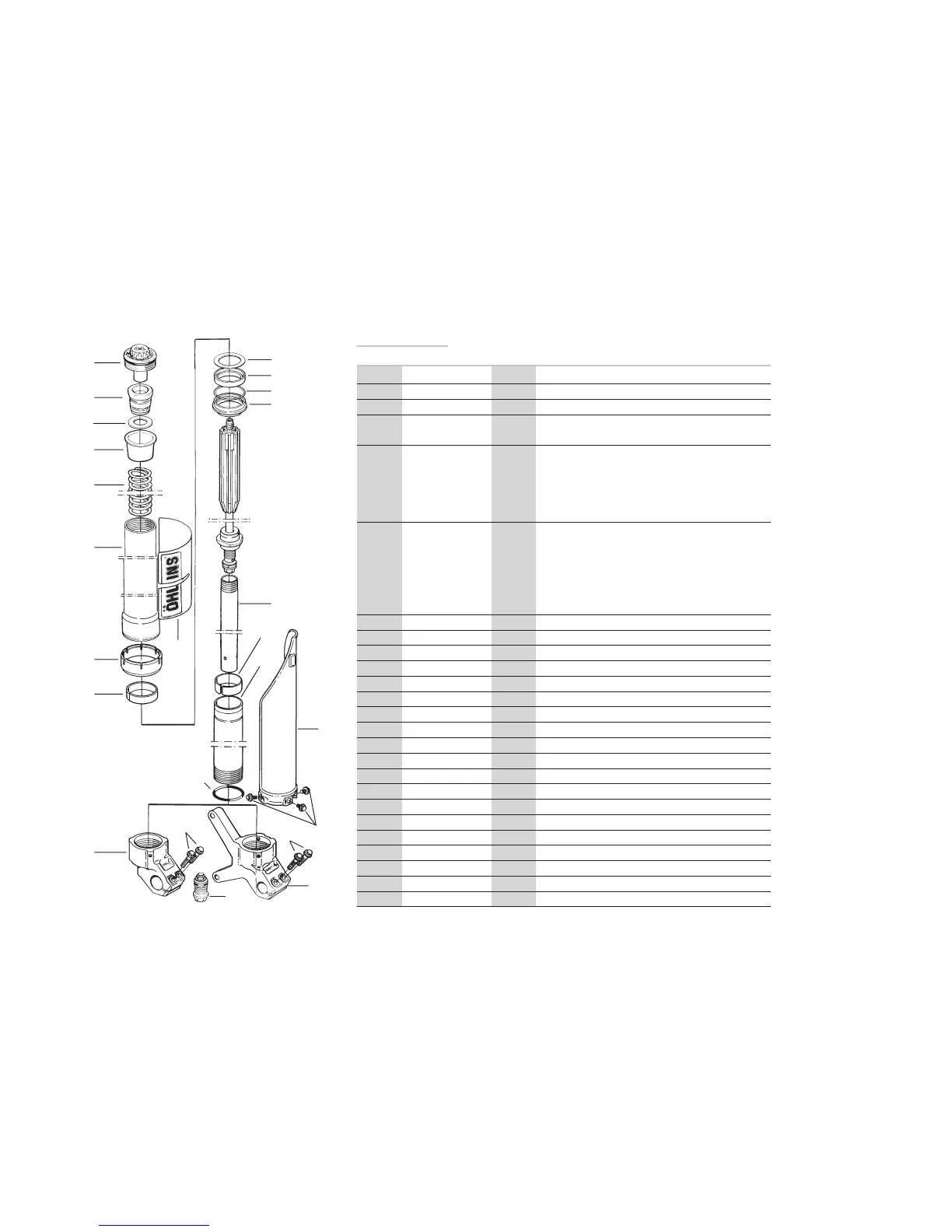

Spare parts
Pos. Part No. Pcs. Description Type/remarks
1 - 1 Top Cap
2 02400-01 1 Bump rubber
3 02403-01 1 Slide washer
4 02436-04 1 Spring support 4 mm pre-load
02436-08 1 Spring support 8 mm pre-load
5 02428-39 1 Spring front fork 3,9 N/mm
02428-41 1 MX/Enduro 4,1 N/mm
02428-43 1 4,3 N/mm
02428-45 1 4,5 N/mm
02428-47 1 4,7 N/mm
5 02490-41 1 Spring front fork 4,1 N/mm
02490-43 1 Supermotard 4,3 N/mm
02490-45 1 4,5 N/mm
02490-47 1 4,7 N/mm
02490-49 1 4,9 N/mm
02490-51 1 5,1 N/mm
6 02425-41 1 Fork leg outer
7 02332-07 1 Cover Sticker Öhlins
8 02409-01 1 Guide Sleeve
9 02427-02 1 Bushing lower
10 02412-01 1 Washer
11 02410-02 1 Seal
12 02015-01 1 Circlip
13 02411-02 1 Scraper
14 02339-01 1 Cylinder tube cartridge
15 02429-02 1 Bushing upper
16 02426-01 1 Fork leg inner
17 00438-16 1 O-ring
18 02309-80 1 Cover fork leg pair
19 02314-01 3 Bolt
20 02396-29 1 Fork bottom left
21 02396-30 1 Fork bottom right
22 02314-02 2 Bolt fork bottom
23 - 1 Base valve assy see page 13
- 00195-01 2 Sticker Öhlins white / transparent
