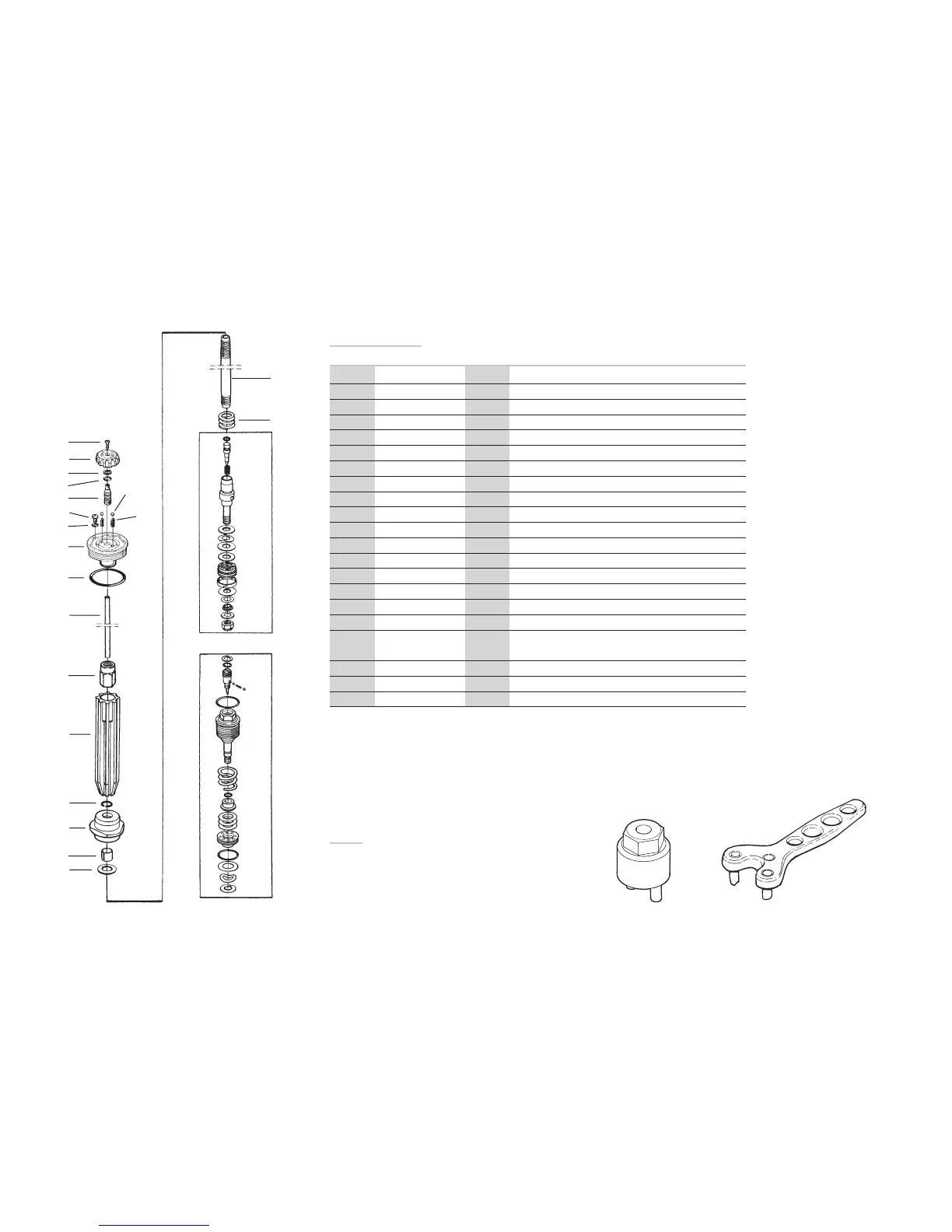

Spare parts
Pos. Part No. Pcs. Description Type/remarks
1 00828-01 1 Screw
2 00820-02 1 Adjustment knob
3 01473-06 1 Circlip
4 00338-79 1 O-ring
5 02405-01 1 Adjustment screw
6 00884-01 2 Ball
7 0883-01 2 Spring
8 01050-01 1 Screw
9 00338-59 1 O-ring
10 02397-48 1 Top cap
11 00438-61 1 O-ring
12 02366-13 1 Adjustment rod
13 02402-01 1 Lock nut
14 02430-01 1 Spring guide
15 01499-02 1 Circlip
16 02399-48 1 Cylinder tube cap
17 00110-03 1 Bushing
18 02340-01 1 Washer MX/Enduro
02340-05 1 Washer Supermotard
19 02393-01 1 Shaft
20 02063-02 1 Spring
19
Tool
1860-01: Top cap releasing tool
1761-02: Top cap releasing tool
1860-01 1761-02
