13
21
22
23
24
25
26
27
28
29
30
31
32
34
33
Compression adjusterRebound adjuster
44
36
37
38
39
40
41
42
43
35
45
46
47
50
48
49

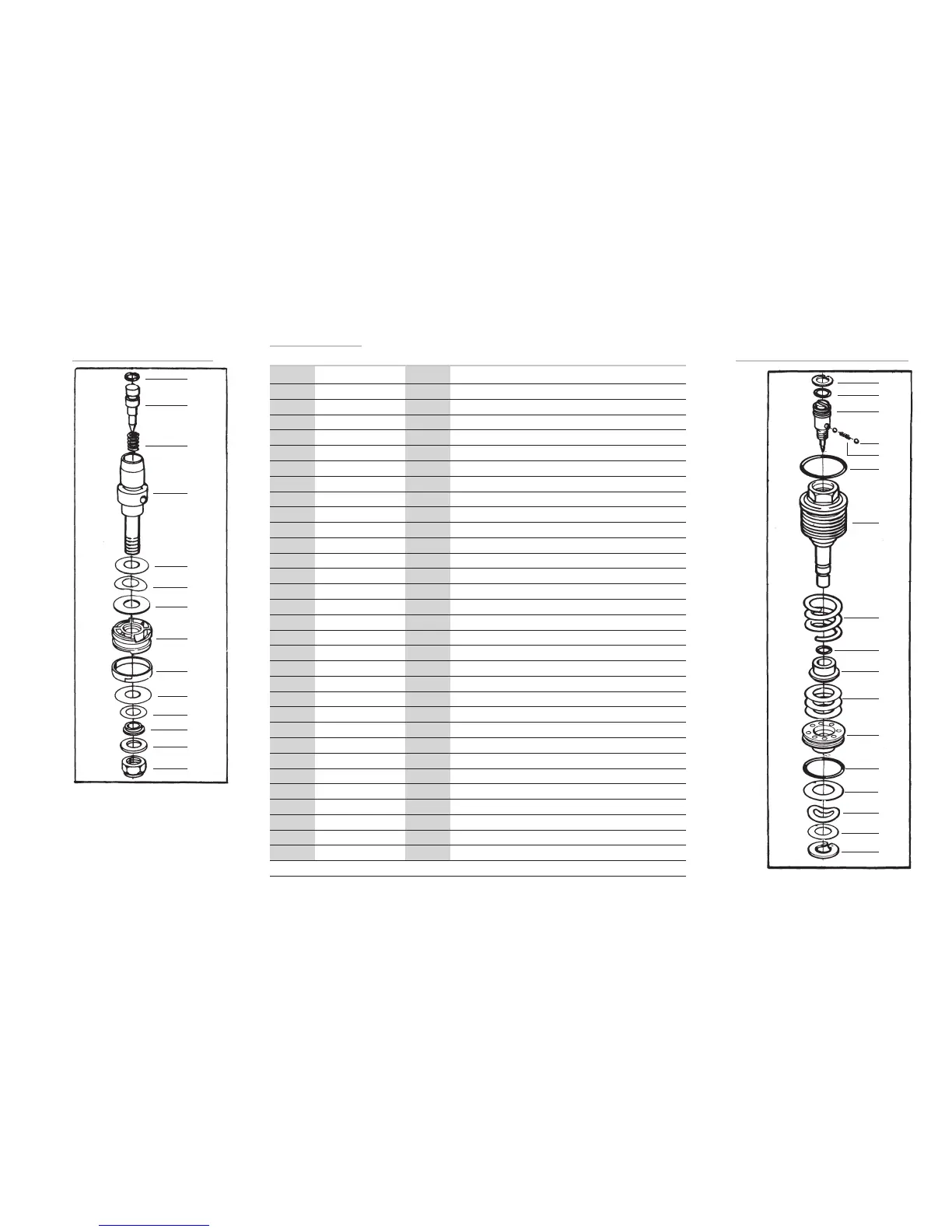

Spare parts
Pos. Part No. Pcs. Description Type/remarks
21 00438-31 1 O-ring
22 02356-03 1 Rebound needle
23 02322-01 1 Spring
24 02320-03 1 Piston holder
25 00530-18 1 Shim see spec. card
26 01149-01 1 Wave washer see spec. card
27 - - Shims see spec. card
28 02335-01 1 Rebound piston
29 01447-02 1 Piston ring
30 - - Shim see spec. card
31 - - Shim see spec. card
32 00641-xx 1 Clamp washer see spec. card
33 00153-01 1 Washer
34 00430-05 1 Lock nut
35 01473-02 1 Circlip
36 00338-53 1 O-ring
37 01242-0x 1 Adjustment needle see spec. card
38 00884-04 2 Ball
39 01248-01 1 Spring
40 00438-02 1 O-ring
41 02413-xx 1 Base valve see spec. card
42 04107-x0 1 Spring see spec. card
43 00438-52 1 O-ring
44 02414-01 1 Poppet valve
45 - - Shim
46 02415-01 1 Valve seat
47 00438-03 1 O-ring
48 00520-23 1 Shim
49 04105-01 1 Wave washer
50 00530-18 x Shim see spec. card
51 05009-12 1 Circlip
51
