SonarMite BTx/SPx v5.02 © 2016 Lymtech
Page 16
SERIAL INTERFACE
In addition to Bluetooth on the BTX all SonarMites have a serial interface which can
connect to a computer using RS232 protocol. The default settings are …
4800 Baud Rate 8 Bit 1 Stop Bit No Parity

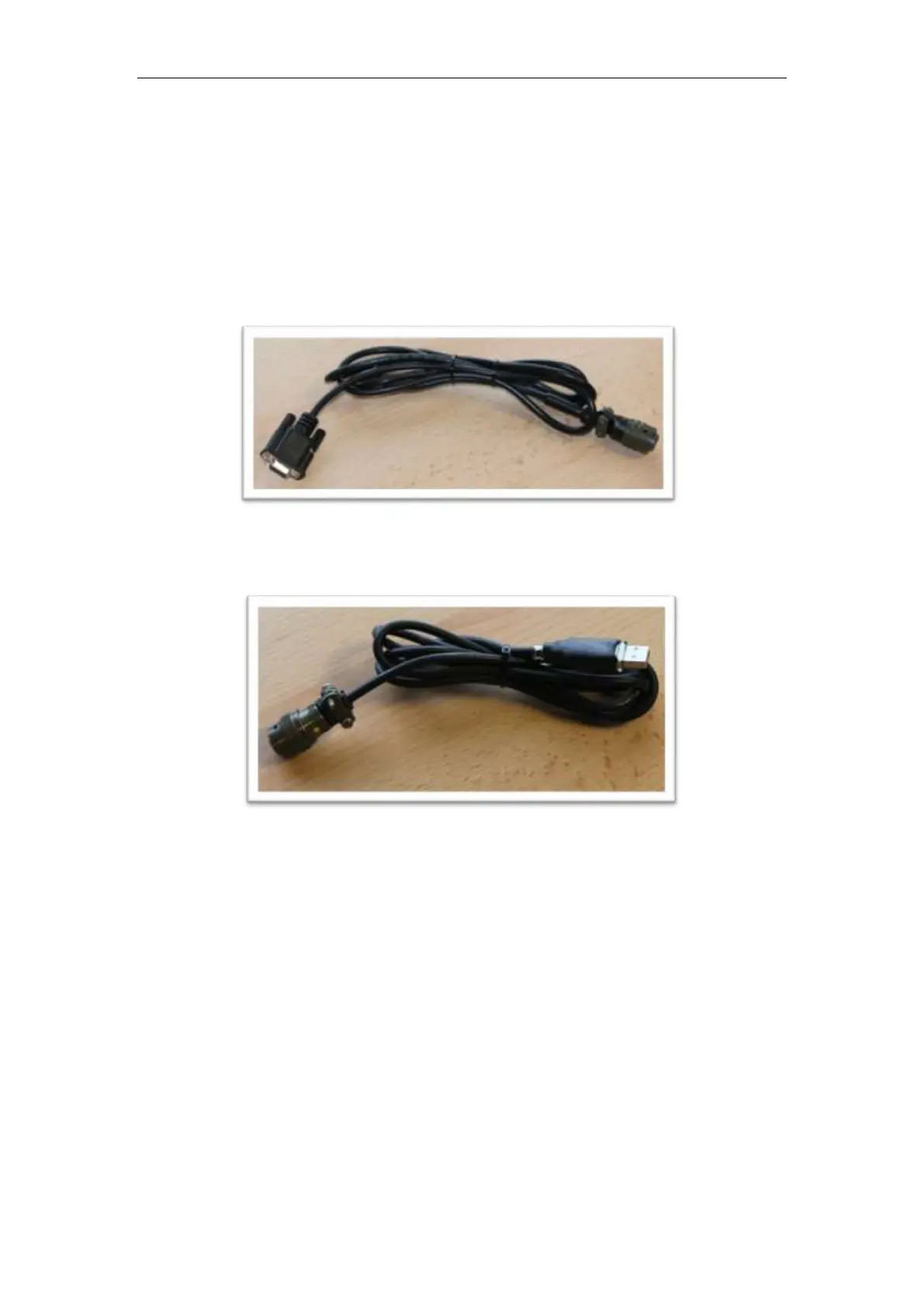

Example Serial Cable
Example USB adaptor cable
Using the slower baud rate of 4800 allows the serial cable to be extended so that the
computer can be up to 20m away from the echo sounder.
