SonarMite BTx/SPx v5.02 © 2016 Lymtech
Page 19

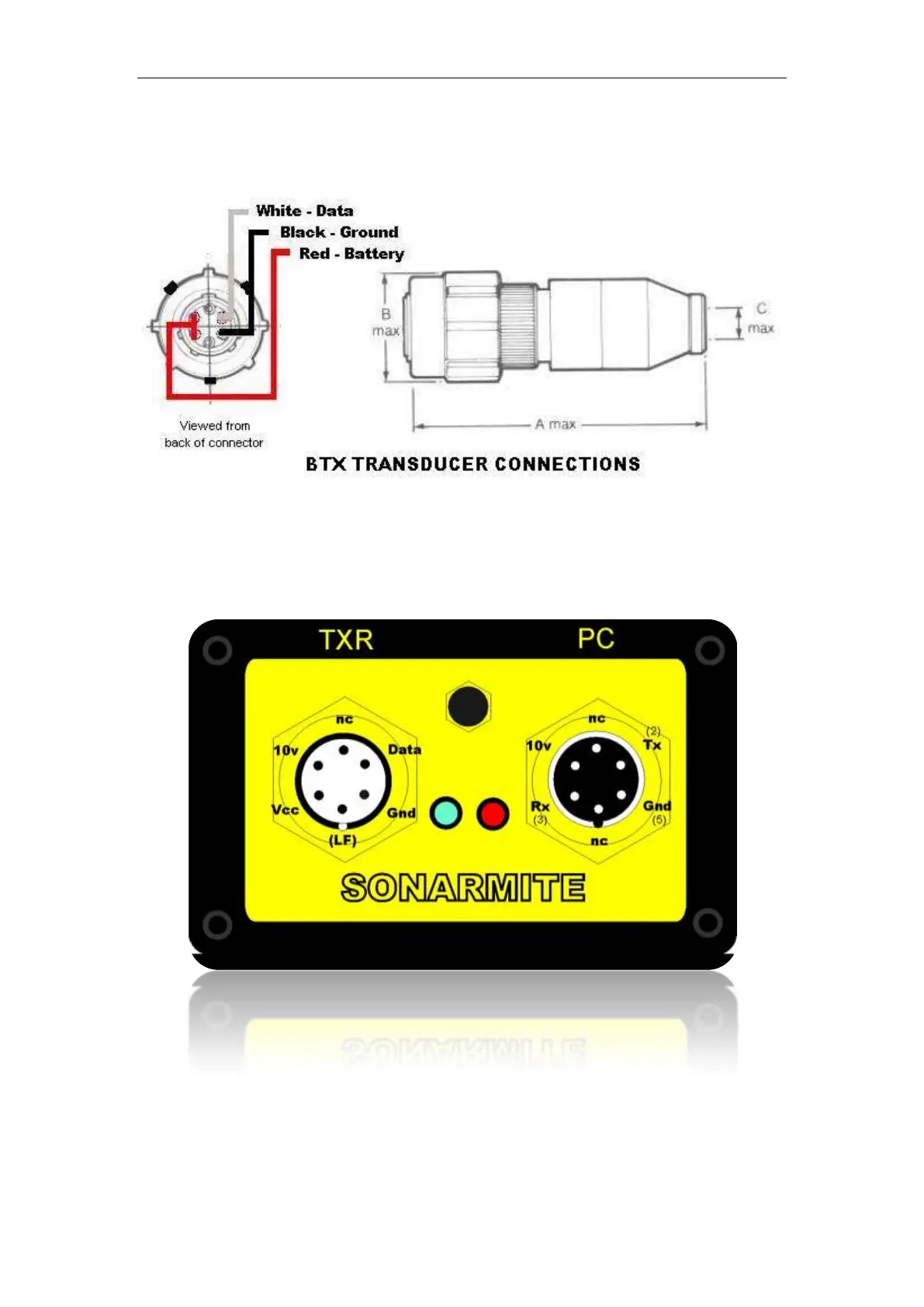

‘Transducer’ connection
This 6 way male connector is used to connect to the SonarMite transducer, the same
connection is also used for the battery charger connector.
Transducer and Computer connections
