SonarMite BTx/SPx v5.02 © 2016 Lymtech
Page 20

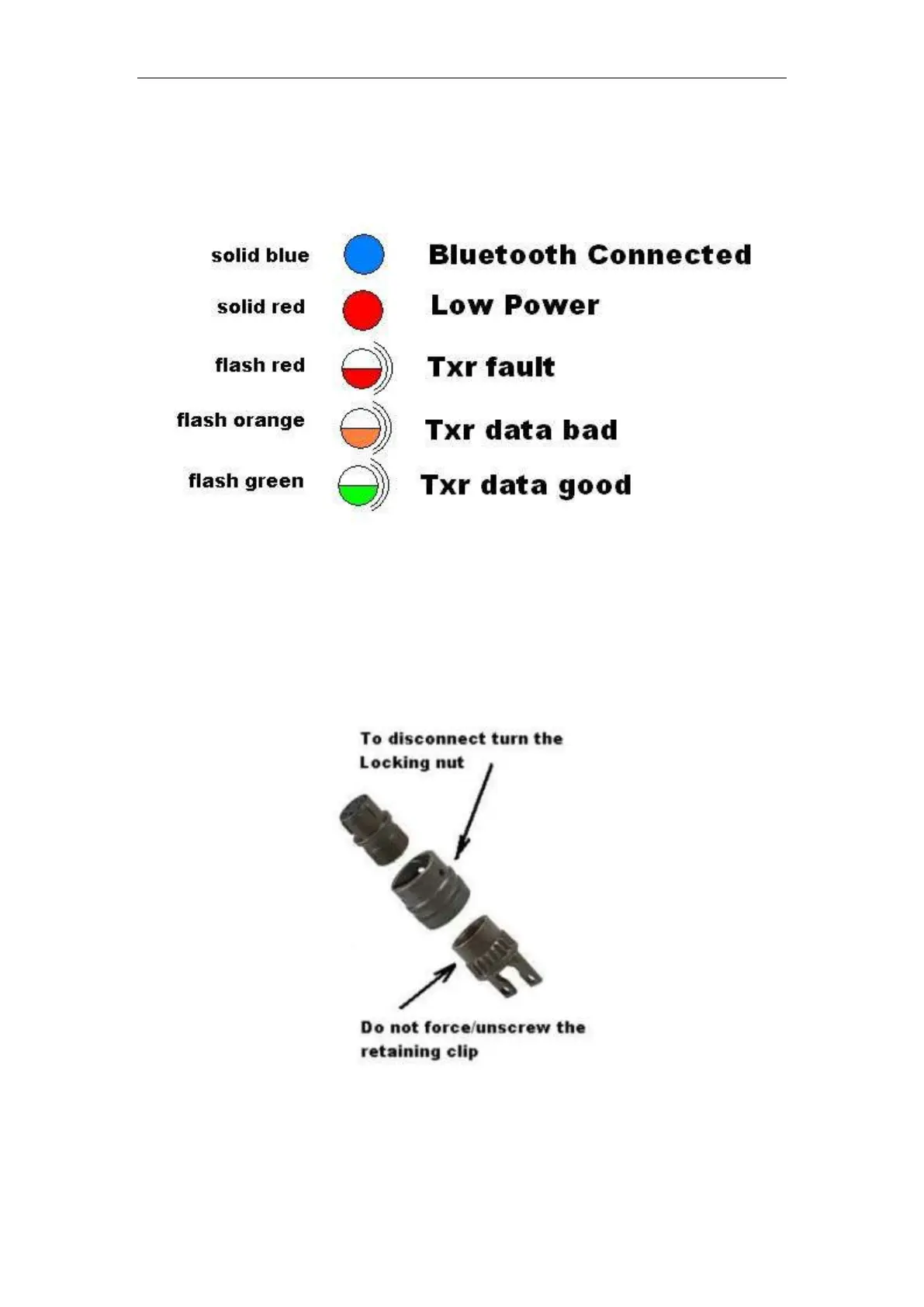

LED Status Feedback
The front of the SonarMite panel has two LED indicators, one for current status
information, the other for Bluetooth connection on/off.
Front Panel status LEDs
Connector Caution
The MIL spec connectors have a locking ring and also a retaining clip. Trying to
remove the connector by unscrewing the retaining clip will twist the internal cable
and could cause a serious fault.
