CONNECTIONS
The only accessible connectors on the SonarMite are those on the front of the machine
referred to as the „Transducer or TXR‟ and „Computer or PC‟ connections. There are
no user connections or serviceable parts within the SonarMite body itself.

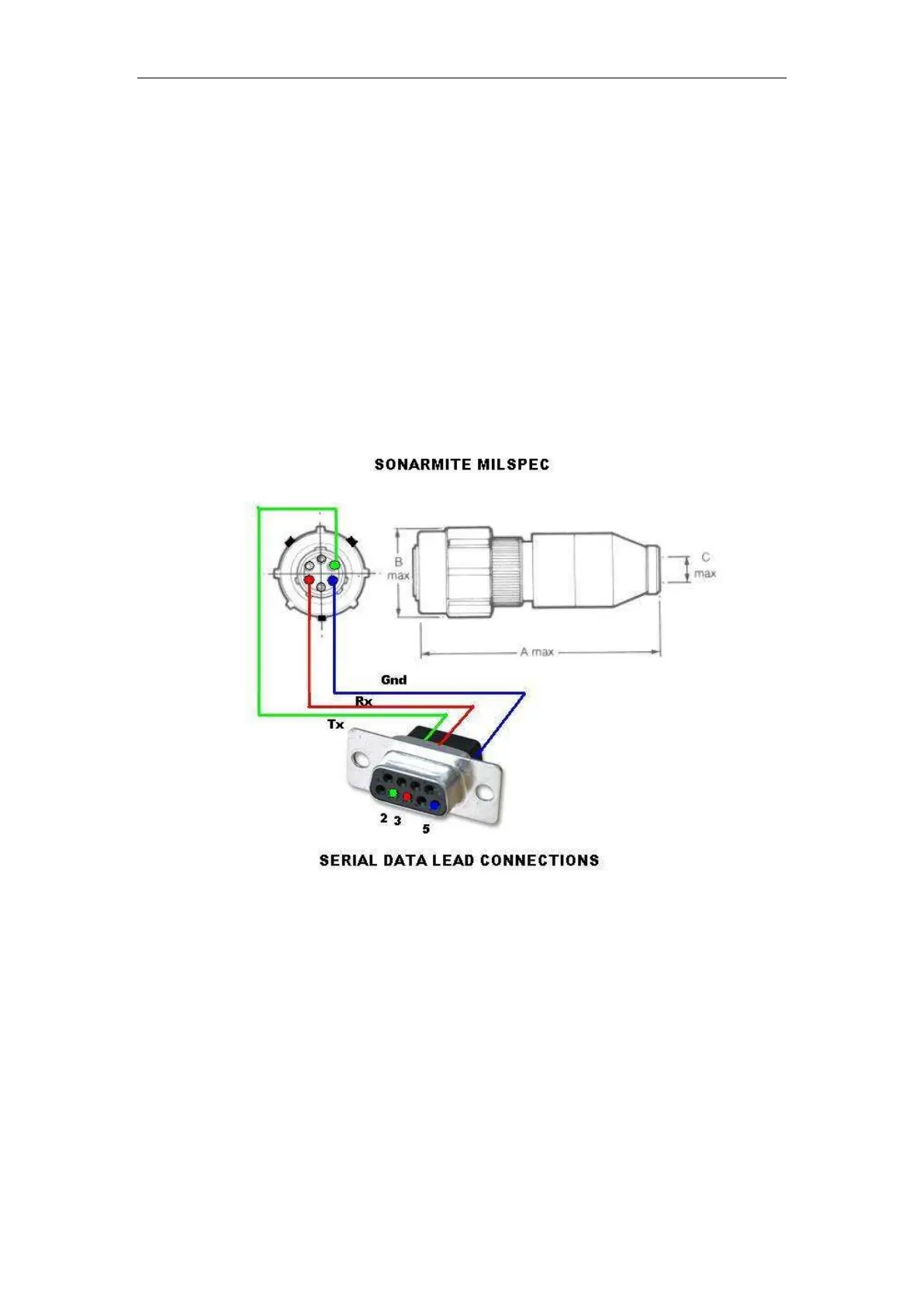

‘PC’ or Computer connection
This 6 way female connector is used to connect to either a PC serial connection or for
an incoming message in the „polled‟ mode connection.
