p. 33
Do not place the receiver inside a metal box. In case of communication problems it may be necessary
to move the location of the receiver, or to add an additional receiver.
The receiver is connected to the master or the add on module using the included cable.
Max distance between the master/add on module and receiver is 3 m. Up to 5 receivers can be
connected. The wiring of the master, add on module and receiver can be made in either a daisy
chain or in parallel.
WLRC-19 Receiver
Connect the receiver to the master, and the system will reconfigure itself for wireless operation.
Technical Data
Supply Voltage . . . . . . . . . . . . . . 24 V from Master
Distance to master . . . . . . . . . . . . . . . . . . Max 3 m
Enclosure . . . . . . . .... . . . . . . . . . . . . . . . . . . IP 21
Ambient temperature range . . . . . . . . . . 0 to 40°C
Communication Frequency . . . . . . . . . . . 868 MHz
Communication distance . . . . . Up to 30 m inside,
. . . . . . . . . . . . . . . . . . . . . . . . Up to 100 m outside
See Quickguide
Waterline Wireless System
Waterline Wireless System
Product Programme

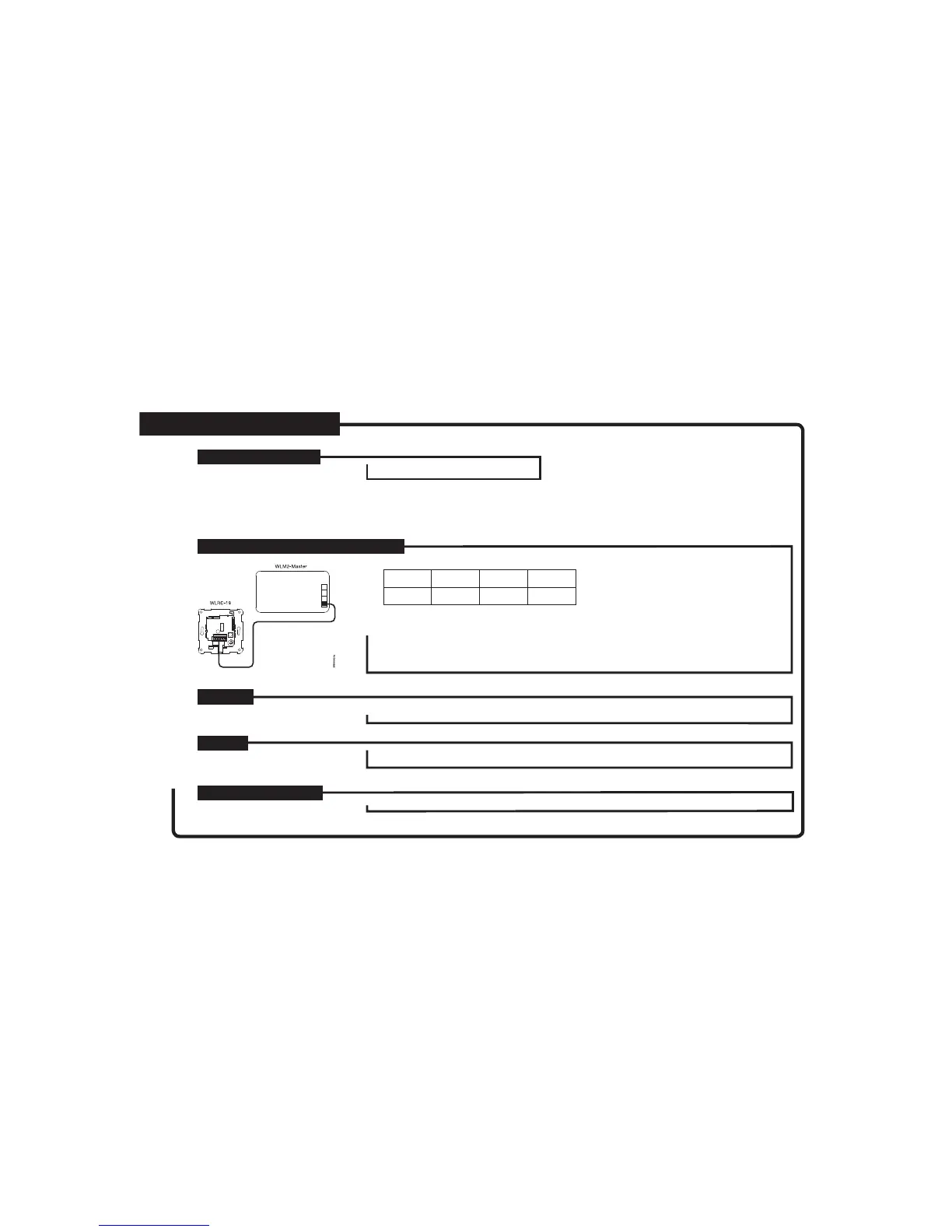

Connection of Master and Receiver
Position
Master
To set up the system
INSTRUCTIONS
B A -- +
Blue Red Brown Yellow
To Next Page
