p. 4

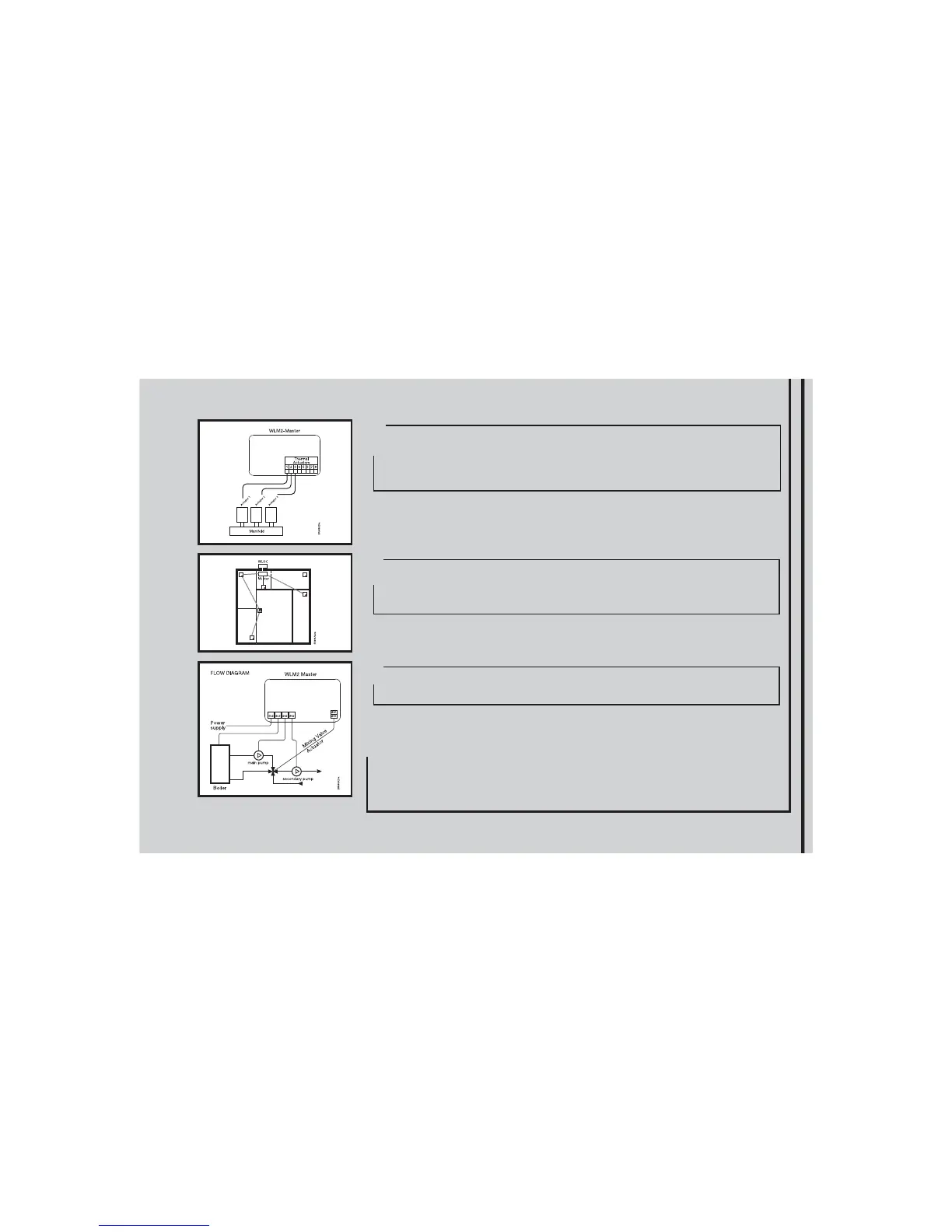

Connect the actuators to the channel outputs on the master in accordance with the pipe manifold
layout (please refer to the area schedule).
Actuator no. 1 on the manifold to output no. 1 on the master.
Actuator no. 2 on the manifold to output no. 2 on the master.
etc.
Outdoor module WLOC-19 (FS Master only):
Install on north facing wall, away from direct sunlight.
Connect into 2-wire Room sensor bus or direct to master, maintaining continuity of positive + and
negative - connections.
Connect 230/240Vac power, UFH circulating pump and boiler in accordance with electrical regulations.
(For FS masters, connect the mixing valve and water flow temperature sensors)
6
7
5
