3. Parts replacement
44983601TH Rev.1
3-6 /

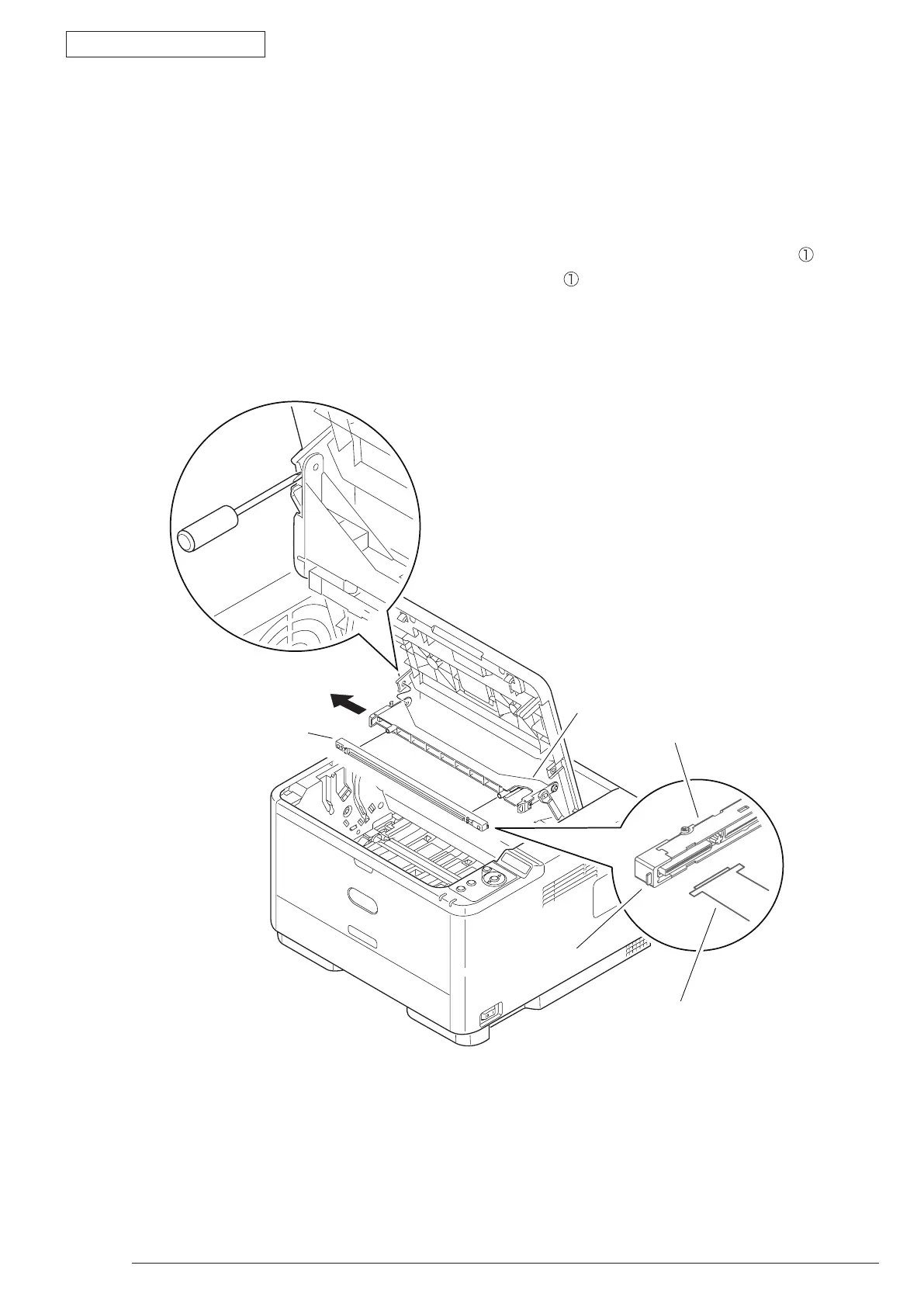

3.3.1 LED Head
(1) Open the Stacker Cover.
(2) Remove the ID UNIT.
(3) Disengage the tab of the Holder-Head from the stacker cover by using a flat-head screwdriver or
something.
(4) Pull the Holder-Head toward you as illustrated below.
(5) Open the Holder-Head by arrow direction and then remove the hook. remove the LED Assy
.
(6) Remove the FFC cable from the connector of LED Assy
.
(7) Installing is performed by the reverse procedure with removing.
Note! Beware of not to touch or press the SLA parts of LED Head directly.
①
①
Hook
FFC cable
Holder-Head
