Oki B431L6

Oki Data CONFIDENTIAL
3. Parts replacement
44983601TH Rev.1
3-7 /

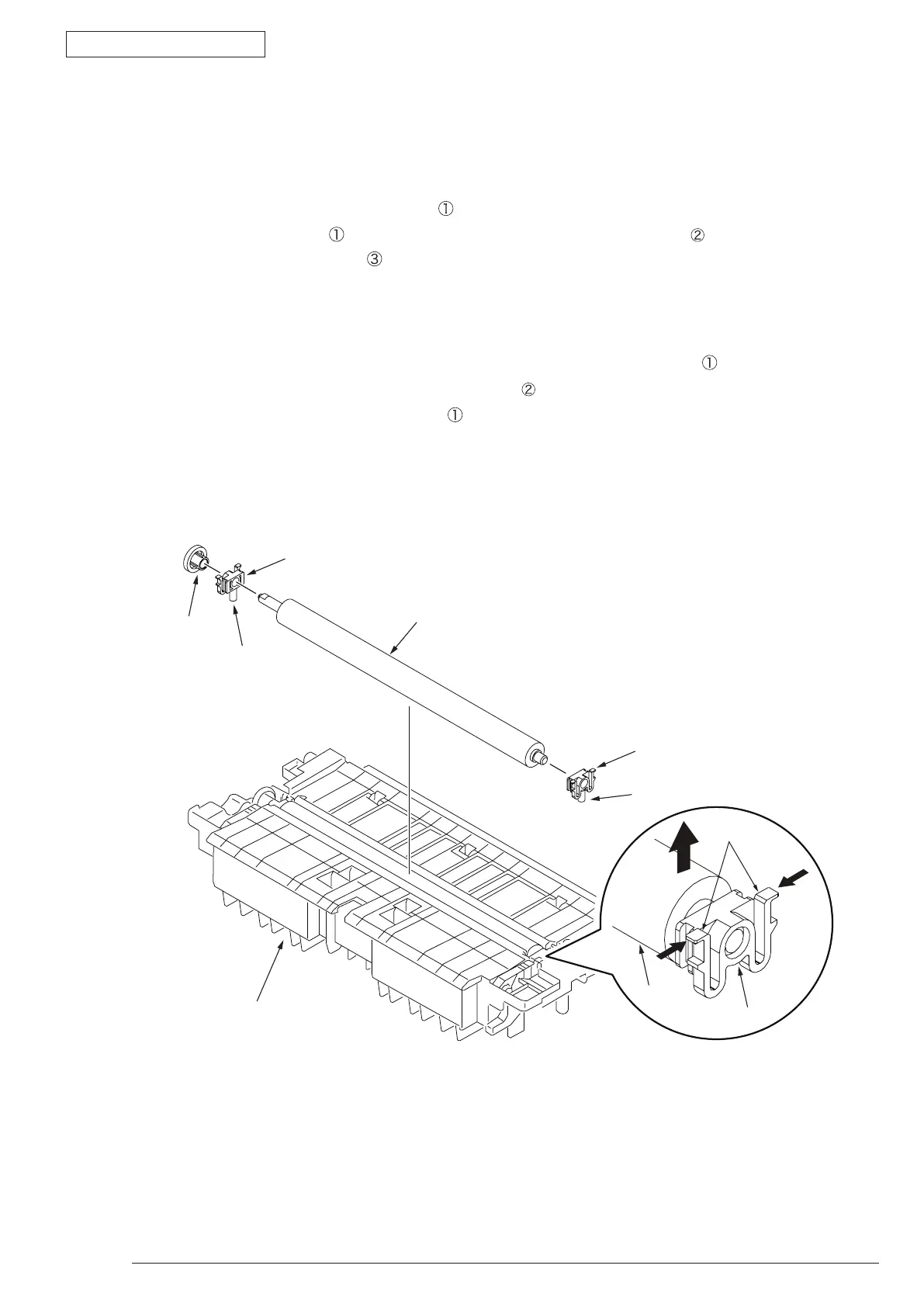

3.3.2 Roller-Transfer
(1) Open the Stacker Cover.
(2) Remove the ID UNIT.
(3) Take the Frame-Assy-TR out of the printer.
(4) Disengage the latches of Bearing-TR
on both ends.
(5) Hold the Bearing-TR
on the both side, and then lift up the Roller-Transfer .
(At this moment, Gear-TR
is also removed.)
(6) Installing is performed by the inverse procedure with removing.
(Note on removing / installing)
1. While installing, pay attention to the up-and-down direction of Bearing-TR
.
2. Operating carefully, not to touch Roller-Transfer
surface.
3. Be careful not to fit each Bearing-TR
to the Frame-Assy-TR with their springs inclined.
Frame-Assy-TR
③
②
②
①
①
①
Spring
Latch
Spring
